Pair of brake levers with clamp TO-202

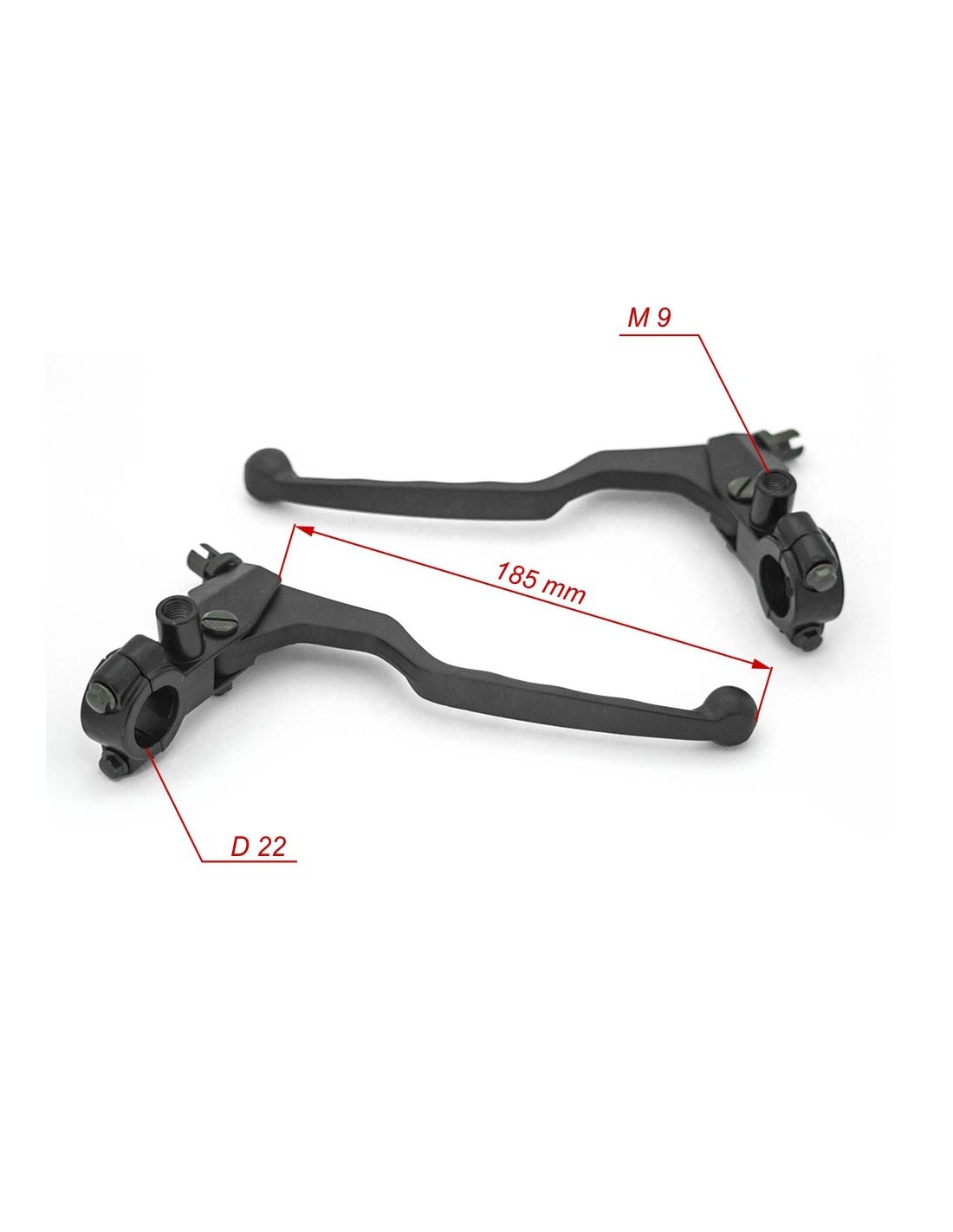

Brake levers, a PAIR with clamps, marked in the name as TO-202. The photo marks three figures: a 185 mm diagonal arrow along the lever, "D 22" at the clamp bore, and "M 9" at the threaded spigot by the lever axle.

• The photo shows TWO levers, and each has its own clamp – this is a pair, not a single part
• The 185 mm arrow is drawn diagonally above the lower lever, without extension lines: its right end rests against the lever's ball tip, while the left one hangs above the housing without reaching the clamp. So this is the length of the lever with the housing, not the full overall size with the clamp
• "D 22" marks the clamp bore – a clamp like this fits onto a 22 mm handlebar
• "M 9" marks a threaded spigot next to the lever axle. What that thread is for, the maker did not mark on the photo, so we do not assign it a meaning
• The clamp bore is the first figure that has to match: a wrong clamp on the handlebar either will not tighten or will not fit on at all
• The levers are black, each clamp has one bolt; a small bracket with two ears is also visible on the clamp
• The marking TO-202 is in the name – it is how you tell this pair apart from neighbouring cards. What that marking means, the maker did not explain
• The cable lever and the hydraulic one look alike from the outside but differ inside: a steel cable hooks onto the cable type, a hose screws onto the hydraulic type. Check what comes from your old one
• Time to replace when the lever is bent, when the axle has worked loose, or when the clamp ear is cracked at the bolt
• Some brake levers sit in the shop not in this category but in the category "Levers / Knobs" – if you cannot find the right one here, open it in the catalogue
• This category holds different items: single levers, pairs of them, switch assemblies and master cylinders. This is not one set

To be straight with you: what the marking TO-202 means, the maker did not explain, and we do not guess — we are asking them. The maker did not state which specific model and year this item is for, and we do not guess — but we can compare the measurements: write us your model and year. Before ordering, measure your handlebar diameter at the clamp point and the lever length from the axle to the tip — or send a photo: we will check it before you order.
