Mini ATV brake lever RIGHT

Mini ATV brake lever, marked RIGHT in the name. Five figures in the photos: lengths 130 mm and 36 mm, a 33 mm block, 84 mm overall, 22.50 mm clamp hole.

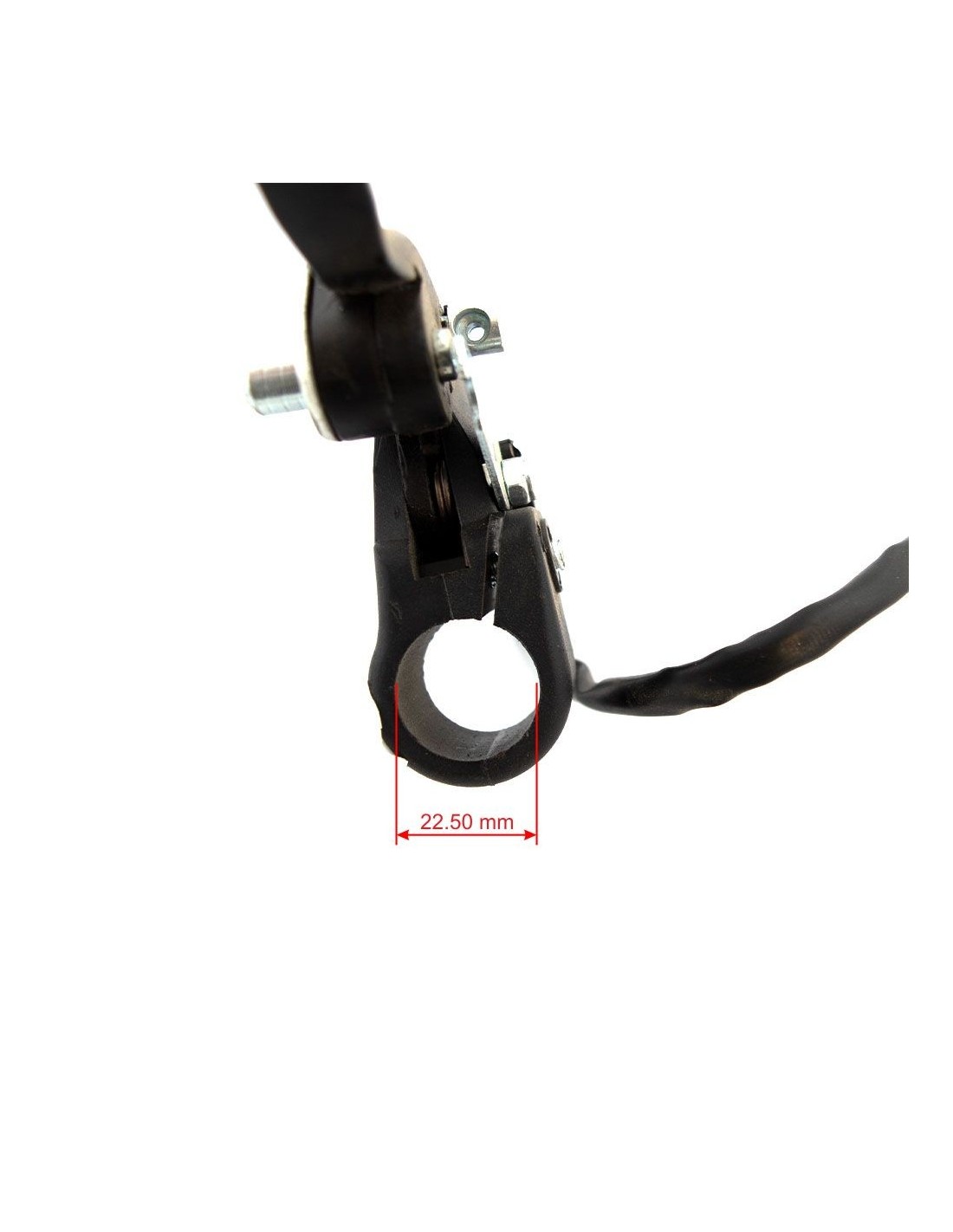

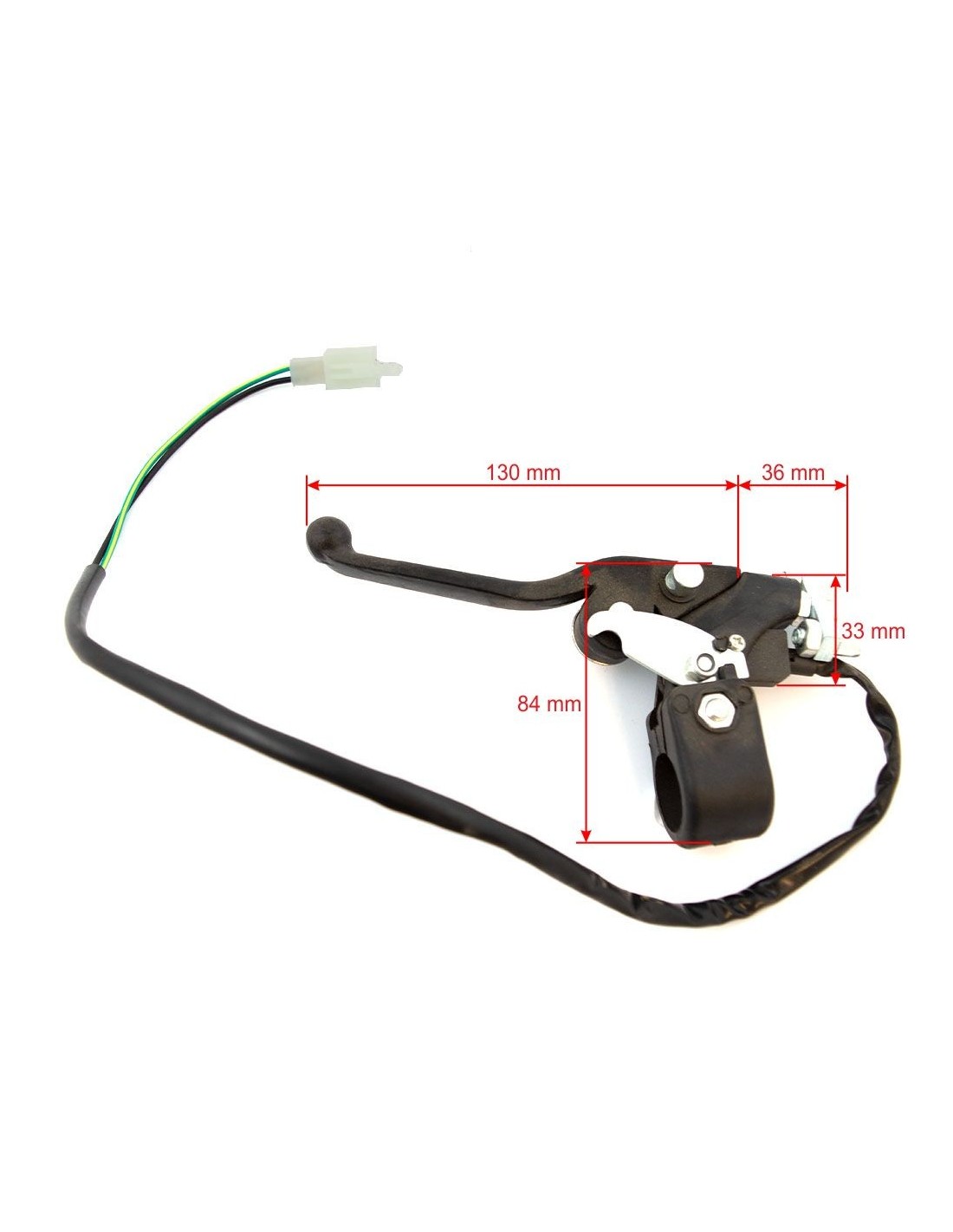

• The 130 mm arrow runs from the ball on the lever to the rib in the middle of the body, and the rest of the assembly is measured by the 36 mm arrow beside it — together they give about 166 mm; 33 mm is the height of that same rear block; 84 mm is the height from the top of the body to the bottom of the clamp; 22.50 mm is the clamp hole
• The maker wrote the figure with a dot, 22.50, and not with a comma; we copy it down exactly as it is marked
• The clamp hole is the first figure that has to match: a clamp that is wrong for your handlebar either will not pull tight or will not go on at all
• This page has photos of its OWN — not shared ones, unlike the left-hand side. That is why we describe how it looks as its own
• It differs from the left-hand side in the clamp hole: 22.50 mm against 22.25 mm. The lengths are marked differently — here 130 mm plus 36 mm, there a single 162 mm arrow across the whole assembly — so do not set one figure against the other
• The photo shows a long black loom with a white two-pin plug and a green and a black wire — the brake light switch
• The other half of the pair is a separate product — "Mini ATV brake lever LEFT"
• Time to replace it when the lever is bent, when the pivot has worked loose or when the clamp lug is cracked at the bolt
• Some of the brake levers in the shop sit not in this category but in "Levers / Knobs" — if you do not find the right one here, open that one in the catalogue
• This category holds different products: single levers, pairs of them, switch assemblies and master cylinders. It is not one single kit

To be straight with you: whether the lever is a cable or a hydraulic one, the maker did not state, and no place for a hose to connect can be seen in the photo. Which exact model and which years this product is for, the maker did not state, and we do not guess — but matching dimensions is something we can do: write us your model and year. Before ordering, photograph your old assembly from above and from the side, so that the wires and the cable seats show — send us the photo: we will check it before you order.
