Wiring system ATV110/125

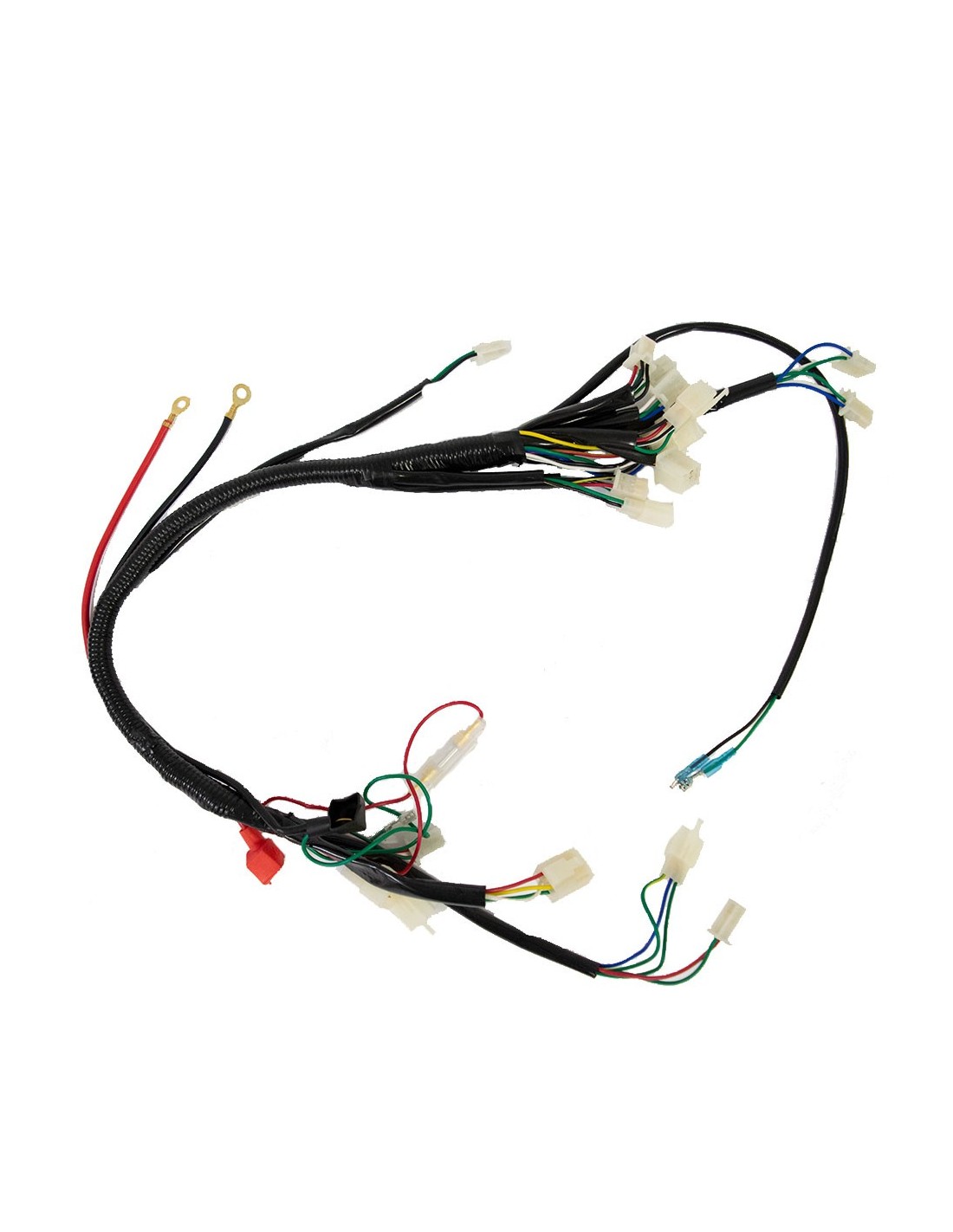

Wiring loom for the ATV110/125 quad: the photo shows a continuous loom in a black corrugated sleeve with white connector blocks, two ring terminals and blue insulated terminals. Compare the connector blocks with your old loom before you remove it.

• The wiring loom is the electrical skeleton of the whole motorcycle: it carries the ignition, lighting, starter and instrument circuits, and a rotten or burnt loom causes faults you will not find by replacing a single part
• The main branch is wrapped in a black corrugated sleeve, the rest – in black insulating tape
• The photo shows two ring terminals on the thick wires – one on the red, one on the black; these usually go to the battery terminals

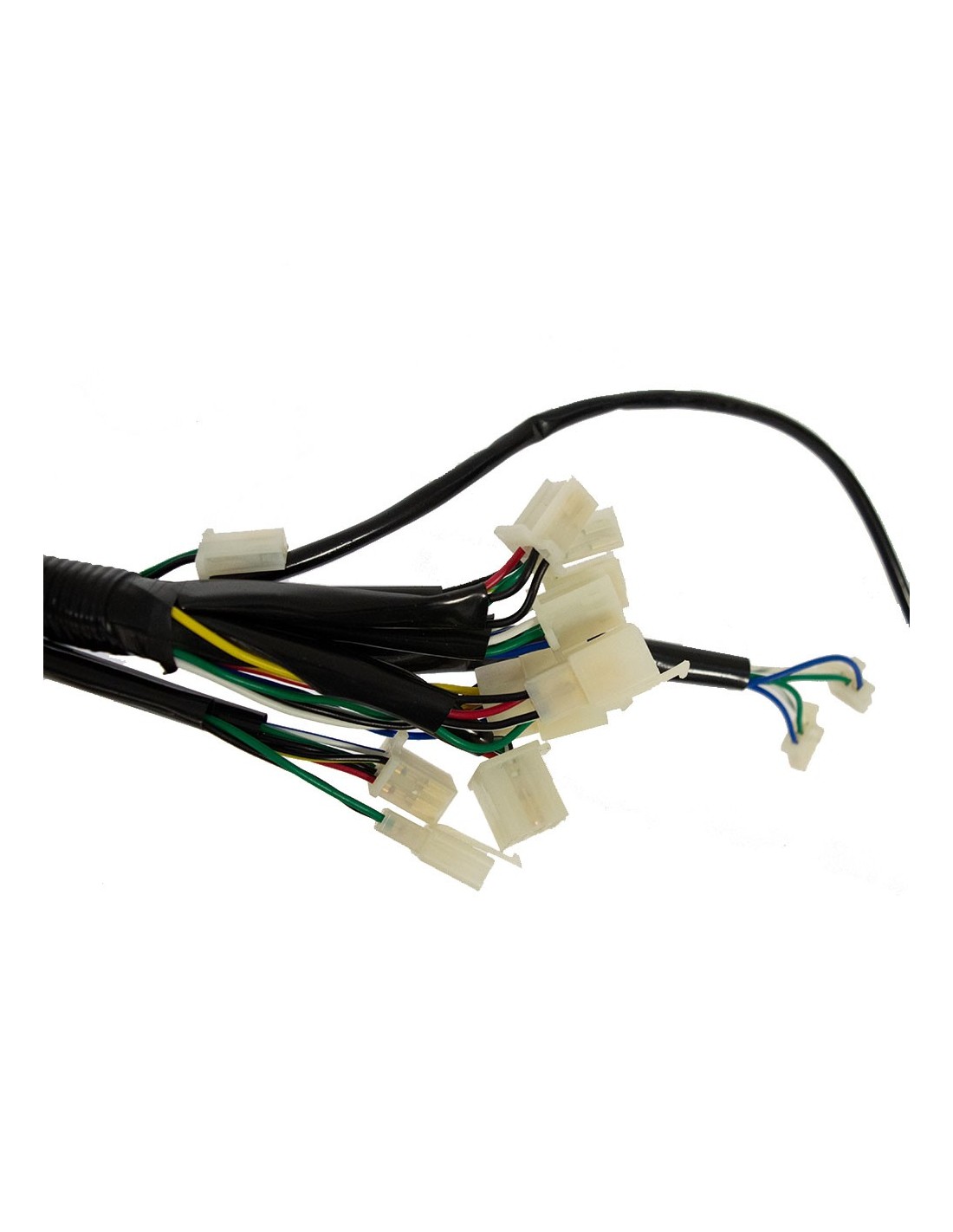

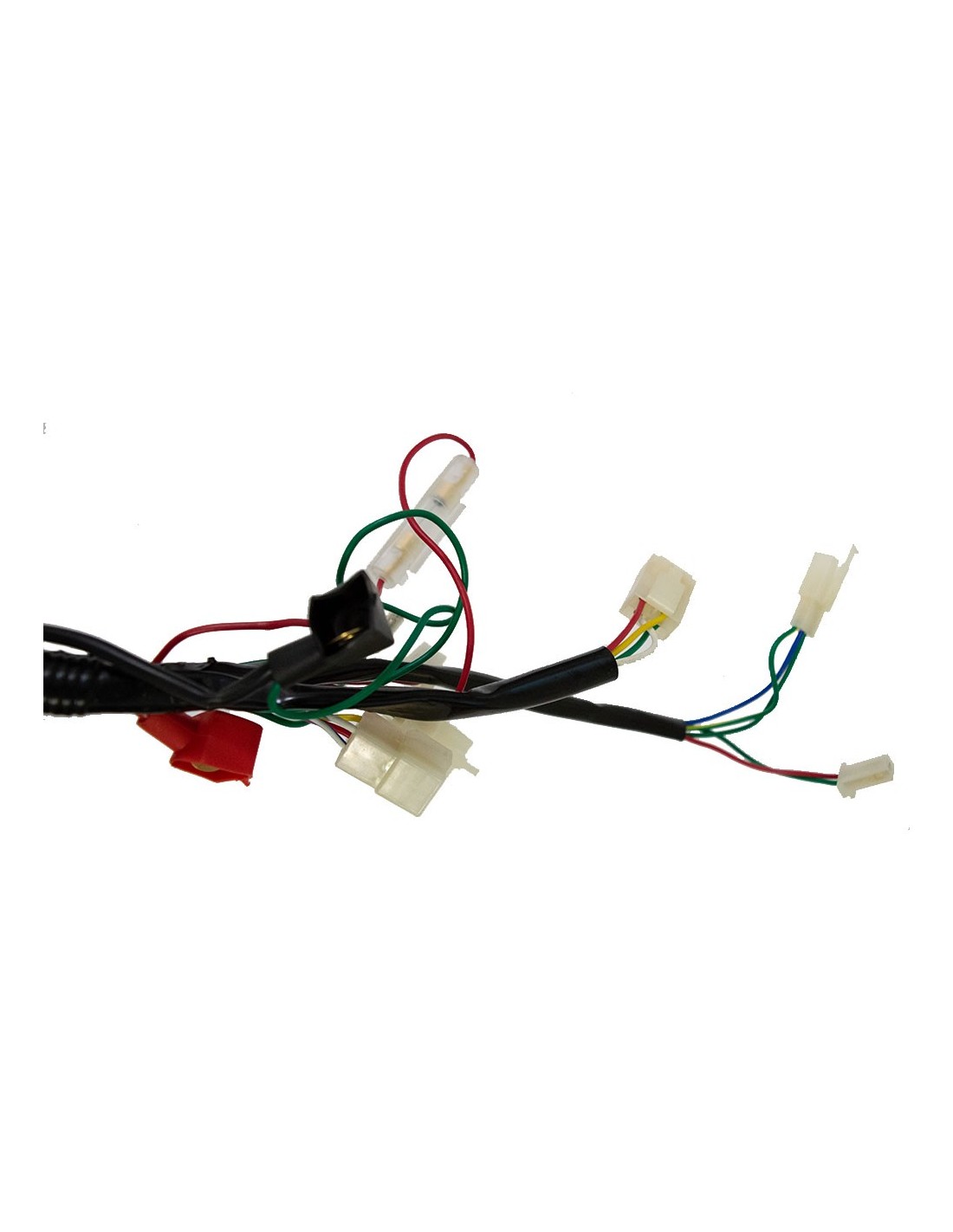

• At the ends of the branches – white connector blocks with two, three and more contacts, one red two-contact connector block, and single blue-insulated flat terminals

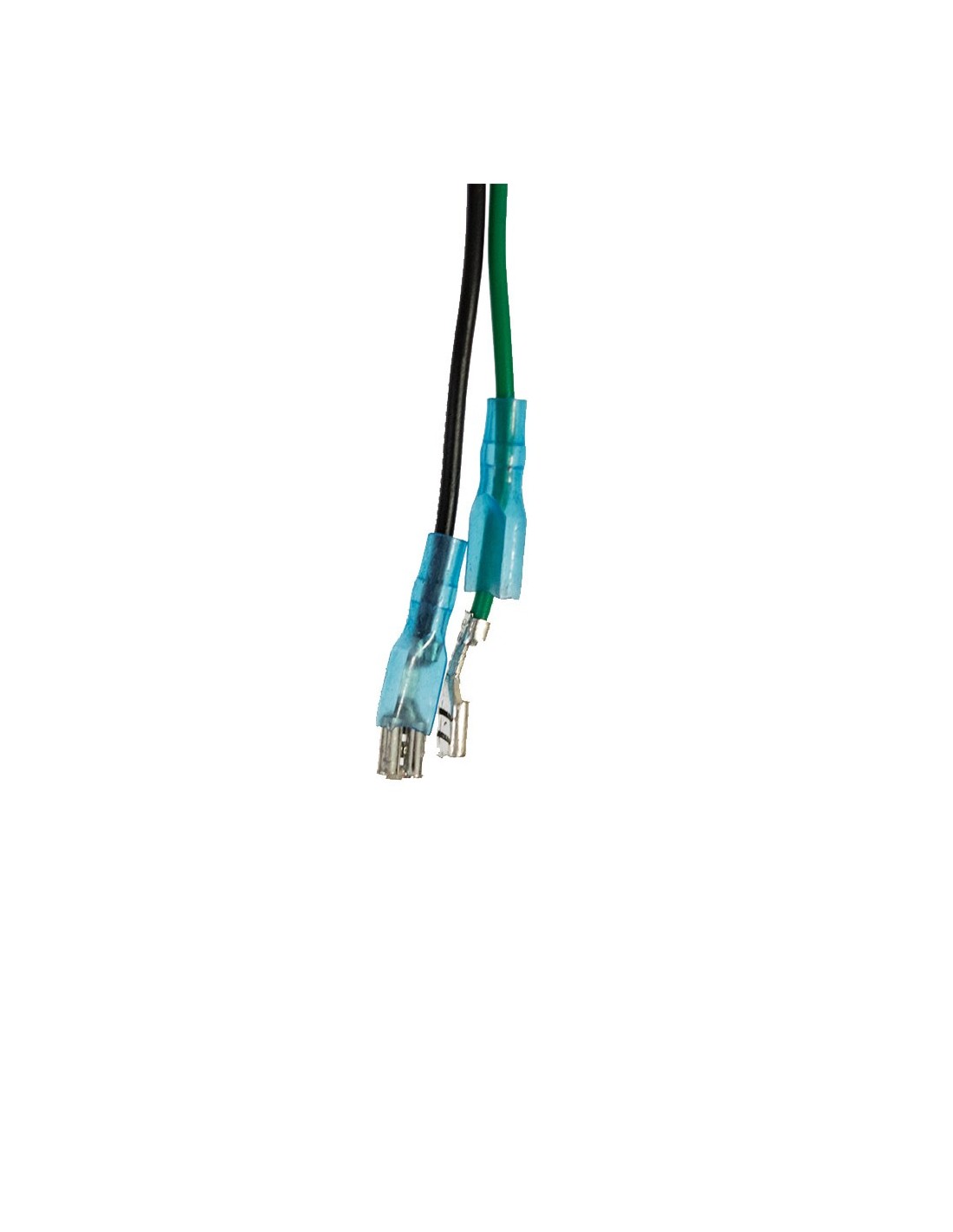

• A separate photo shows two blue insulated terminals on a black and a green wire – they are not fitted into a connector block, but wired directly
• The name indicates the ATV110/125 group, but there is no model marking on the loom itself
• The photo gives no loom length, no wire cross-section and no numbering of the connector block contacts

To be straight with you: which plug is for which device, the maker did not specify, and we do not guess: it is worth comparing the loom with your old one plug by plug, not by guesswork. Which specific year and version it is for is also not written. Before ordering, count the connector blocks and their contacts on your old loom, send us a photo of the old part – we will check it before you order.

24-month warranty · tel. +370 685 777 56
