Gearbox kit with fork ATV110/125 C

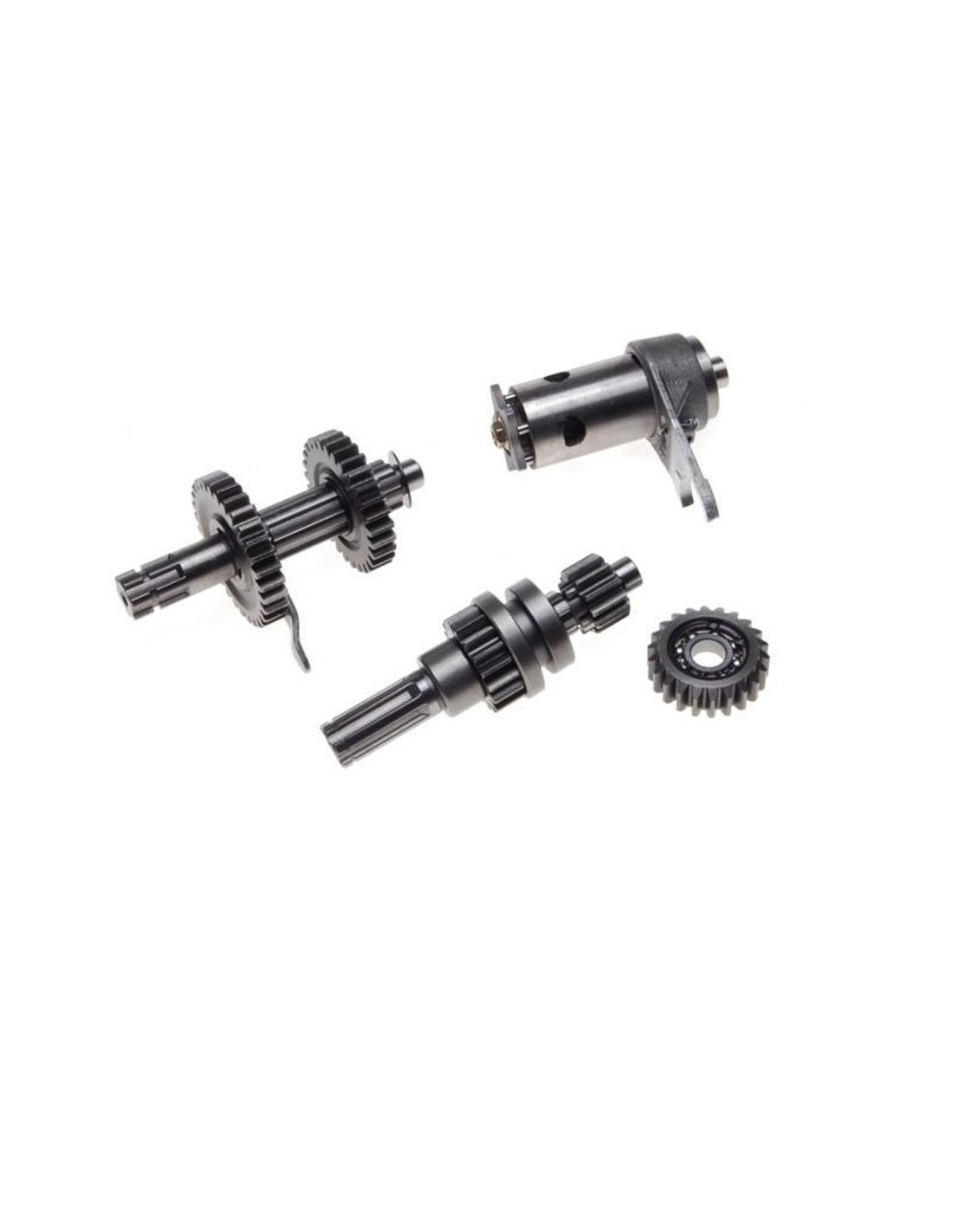

Gearbox kit with fork ATV110/125 C — shafts 119 mm and 122 mm, a 96 mm drum with fork, and a 22z gear with a ball bearing (z – tooth count). Compare with your old parts before ordering.

• The shafts with gears transmit the rotation, and the fork on the drum shifts the gear — it pushes the gear into another position.

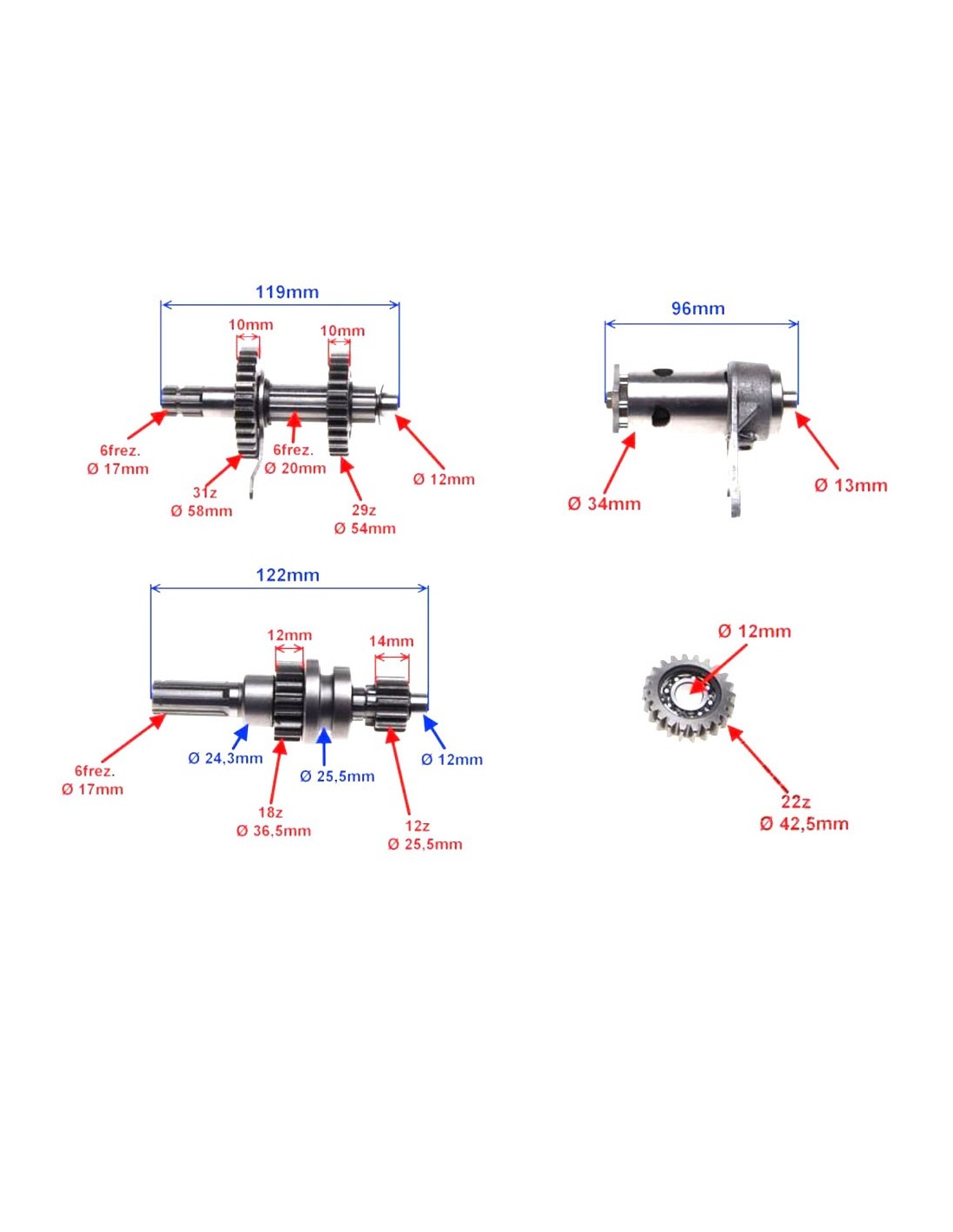

• 119 mm shaft: splined end "6frez.", Ø 17 mm, splined middle "6frez.", Ø 20 mm, the other end Ø 12 mm; gears 31z (Ø 58 mm) and 29z (Ø 54 mm), both 10 mm wide.
• Under the 31z gear, both the photo and the drawing show a curved plate.
• 122 mm shaft: splined end "6frez.", Ø 17 mm, gears 18z (Ø 36,5 mm, 12 mm wide) and 12z (Ø 25,5 mm, 14 mm wide), the end Ø 12 mm.
• The drum is 96 mm; the end with the plate is marked Ø 34 mm, the opposite end Ø 13 mm, and two holes are visible on the side.
• The 22z gear is Ø 42,5 mm; at its centre is a ball bearing, and a Ø 12 mm arrow points into its bore.
• The photo gives no other bearings and no gearbox body.

We write only what we know. Which ATV110/125 quads the C kit is meant for is not stated in the name, and we do not guess it. Before ordering, compare your shaft lengths with 119 mm and 122 mm, count the gear teeth, send us a photo of the old parts — we will check it before you order.
