Gearbox assembly for 156FMI engine

Article no. 71199
45 €
Prices incl. VAT
In stock — Šakiai

Order by 16:00 — Omniva ships today

1
Not sure it fits your bike? Ask our mechanics or see our fitment-by-VIN FAQ
Same-day dispatch — order by 16:00
24-month guarantee
14-day returns
In stock in Šakiai

Product information

Gearbox assembly for 156FMI engine – two shafts with six gears each: in the drawing, a 147 mm shaft with gears from 24z to 36z, and a 174,5 mm shaft with gears from 13z to 25z (z – tooth count). Compare with your old shafts before ordering.

  • These two shafts carry the gearbox gears; when you shift gear, a different pair of gears takes over the drive.
  • 147 mm shaft: 29z (Ø57 mm), 36z (Ø68 mm), 28z (Ø56 mm), 26z (Ø51,5 mm), 24z (Ø48 mm) and 32z (Ø61,5 mm); one end Ø15 mm, the other splined – "6 frez.", Ø20 mm.
  • 174,5 mm shaft: 19z (Ø38,5 mm), 13z (Ø27,5 mm), 20z (Ø40 mm), 23z (Ø44,5 mm), 25z (Ø48 mm) and 17z (Ø34 mm); splined sections "6 frez." – Ø20 mm and Ø30 mm.
  • The longer shaft's end is threaded, marked Ø15,8 mm there; the opposite end is Ø15 mm.
  • The drawing also marks the gear widths – from 8 mm to 12 mm.

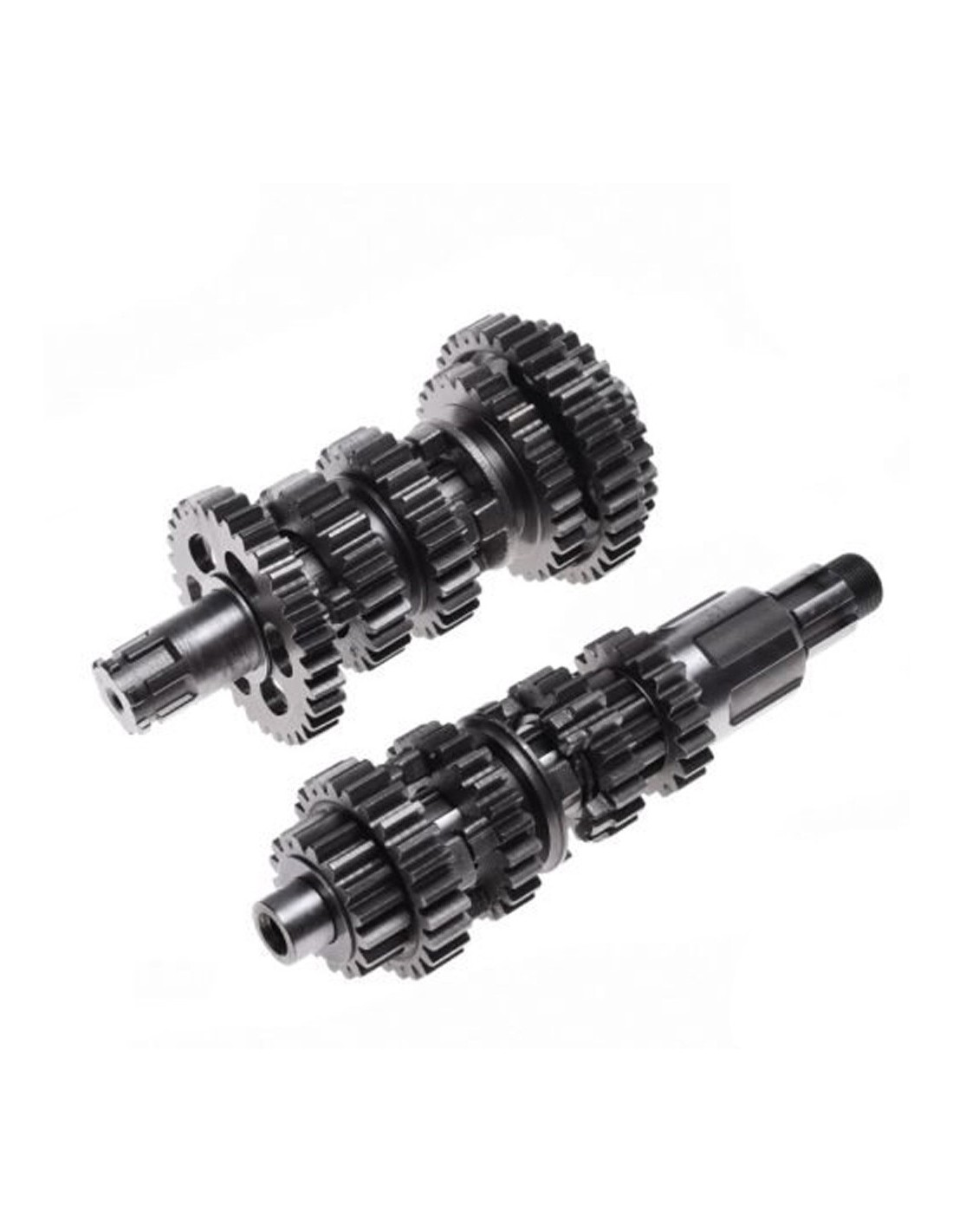

  • The photo gives no shift forks, no shift drum and no bearings.

We write only what we know. The name only names the 156FMI engine; which motorcycles or ATVs the assembly fits and how many gears it has is not stated, and we do not guess. Before ordering, compare your shaft lengths with 147 mm and 174,5 mm, count the gear teeth, send us a photo of the old parts — we will check it before you order.
