ATV200 universal joint 4x22

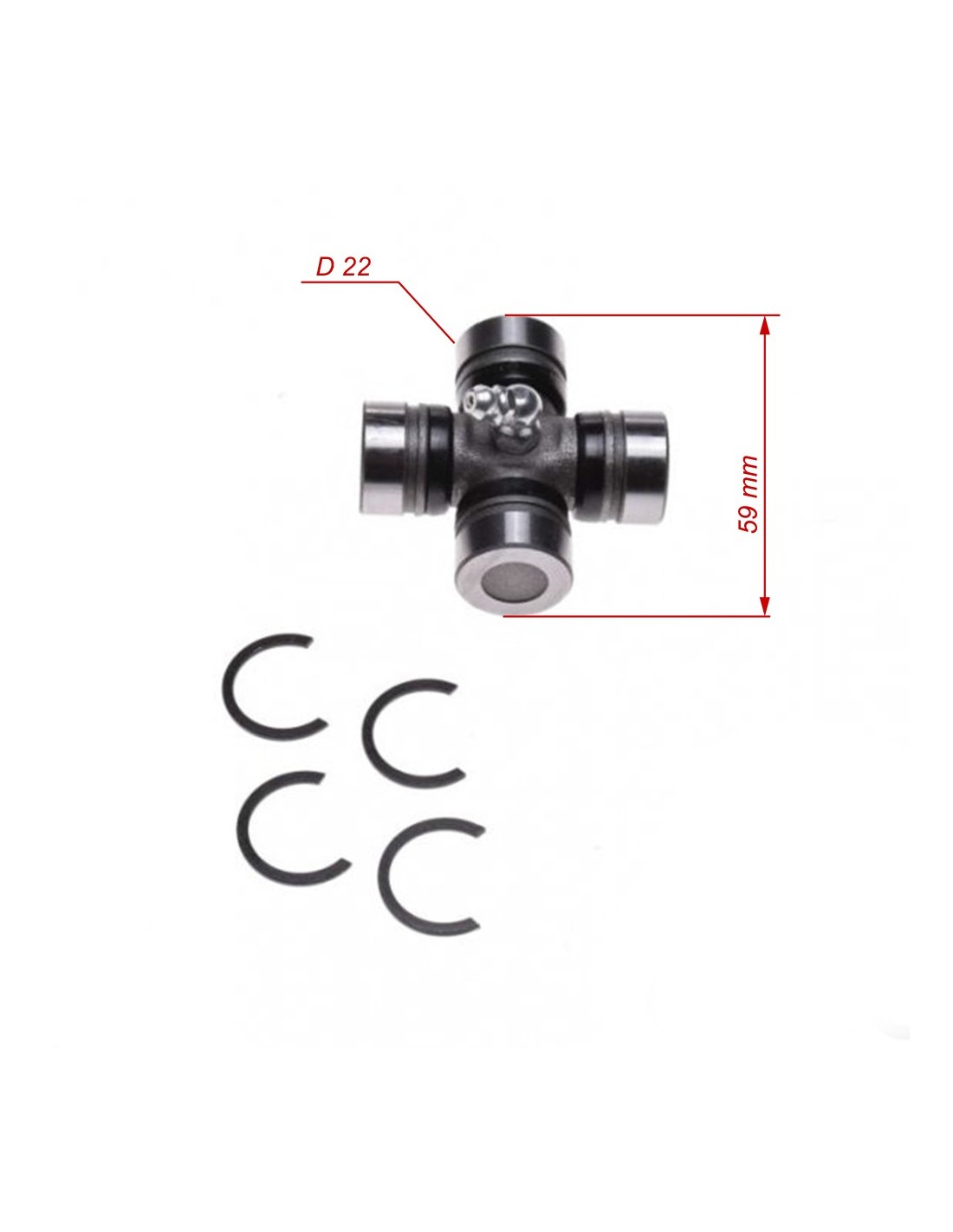

ATV200 universal joint 4x22: the drawing marks D 22 at the top cup, and 59 mm between the ends of the top and bottom cups. Compare with your old universal joint before ordering.

• Rotation passes through the cross from one part of the drive shaft to the other, even when they are joined at an angle.
• There is no unit of measurement next to D 22; the leader line runs to the side of the top cup.
• The 59 mm guide lines rest against the outer ends of the top and bottom cups.
• Four black cups with bare metal ends, a grease nipple at the centre of the cross.
• In the photo, next to the cross — four C-shaped retaining rings; whether they are included in the set is not stated in the name.
• The same 59 mm is marked on the 4x20 cross listing's drawing too; the difference is the mark at the cup: here D 22, there D 20.

To be straight with you: which ATV200 quads the 4x22 cross fits, and how, besides the mark at the cup, it differs from the 4x20, is not stated in the name, and we do not guess. Before ordering, measure your cross's cup diameter, send us a photo of the old part — we will check it before you order.
