Mini bike brake pads (4 pcs)

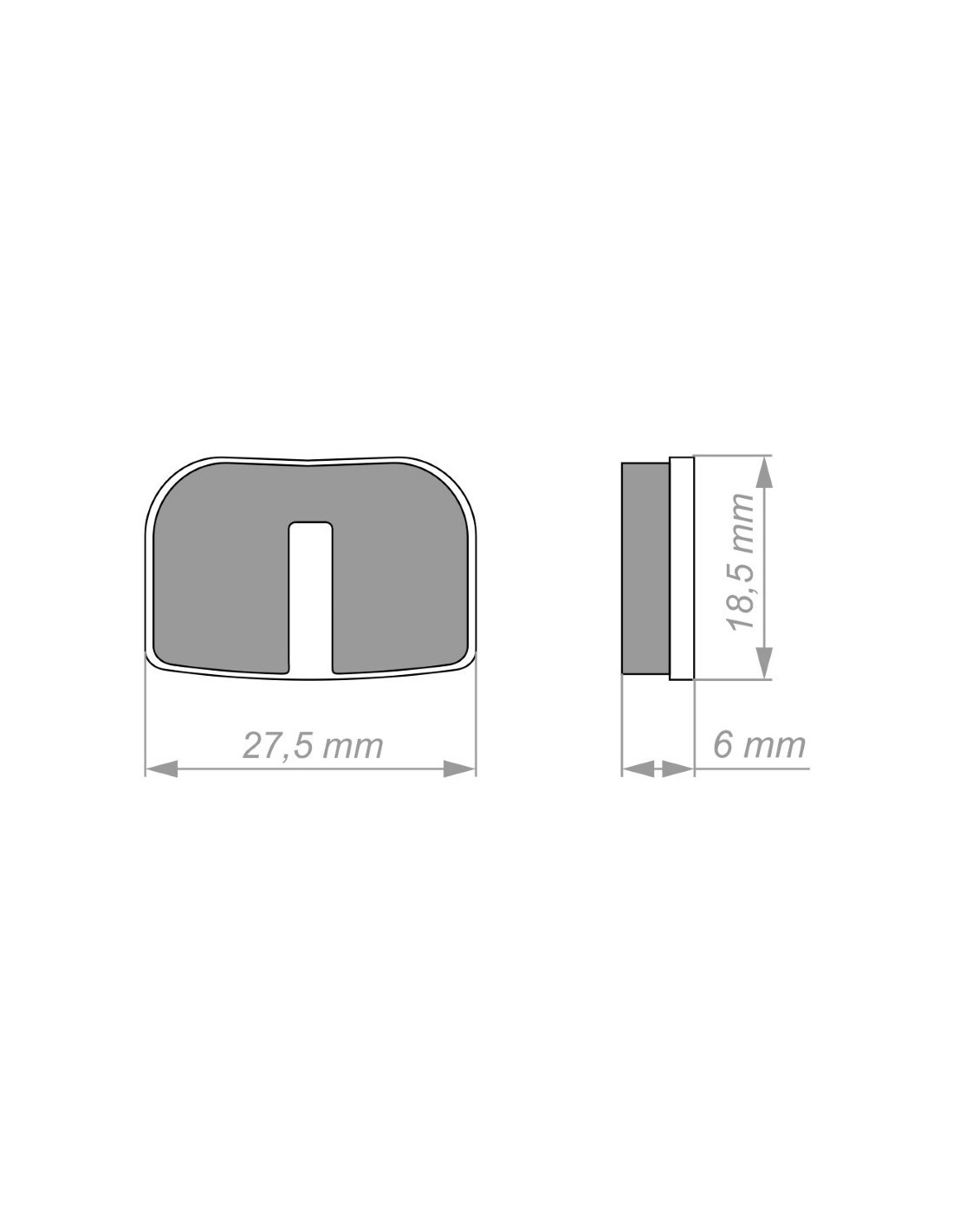

Mini bike disc brake pads; the name states 4 pcs. The drawing marks: width 27,5 mm, height 18,5 mm, total thickness 6 mm.

• In the drawing the three main figures mean this: the width is measured across the bottom edge, the height in the side view, and the thickness is the total – the friction material together with the metal backing plate
• The pad is small, almost square, and there is a rectangular notch cut into its middle from the bottom edge – this is also visible in the photo

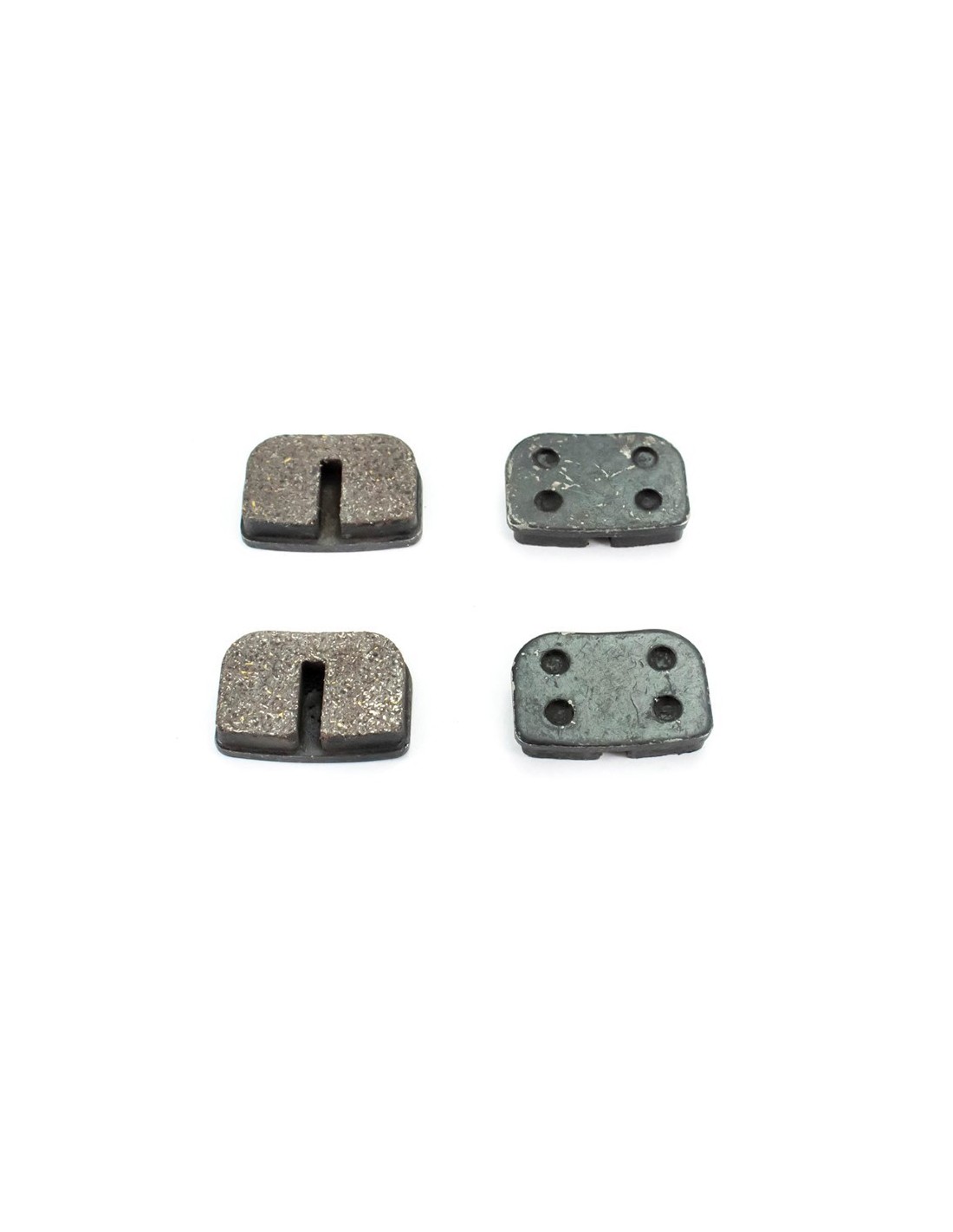

• The photo shows the pad from both sides: four round recesses are visible on the backing plate
• This is the smallest pad in this category: the neighbouring ones are marked 31,5 mm and 36 mm wide, while this one is 27,5 mm
• The list also has "Mini bike brake caliper left side" and "…right side" – the same mini bike brakes from the other side
• The photo itself has no scale: no ruler, no object placed for comparison. Only the figures given in the drawing tell you the size, so measure your old pad
• It is time to replace them when the layer of friction material wears down to the metal backing, or when it is scorched and shiny: then the brake squeals and the lever goes almost to the handlebar
• Supplier code MC 05150 – quote it again when ordering

To be straight with you: the drawing has no mounting holes, and the maker did not mark how the pad is held in the caliper. Which exact model and year these pads are for, the maker did not specify, and we do not guess – but matching dimensions is something we can do: write us your model and year. Before ordering, take out the old pad and use a caliper gauge to measure its width, height and thickness, and if it has lugs – also the distance between the centres of their holes; or send us a photo: we will check it before you order.

24-month warranty · tel. +370 685 777 56
