Button - toggle switch

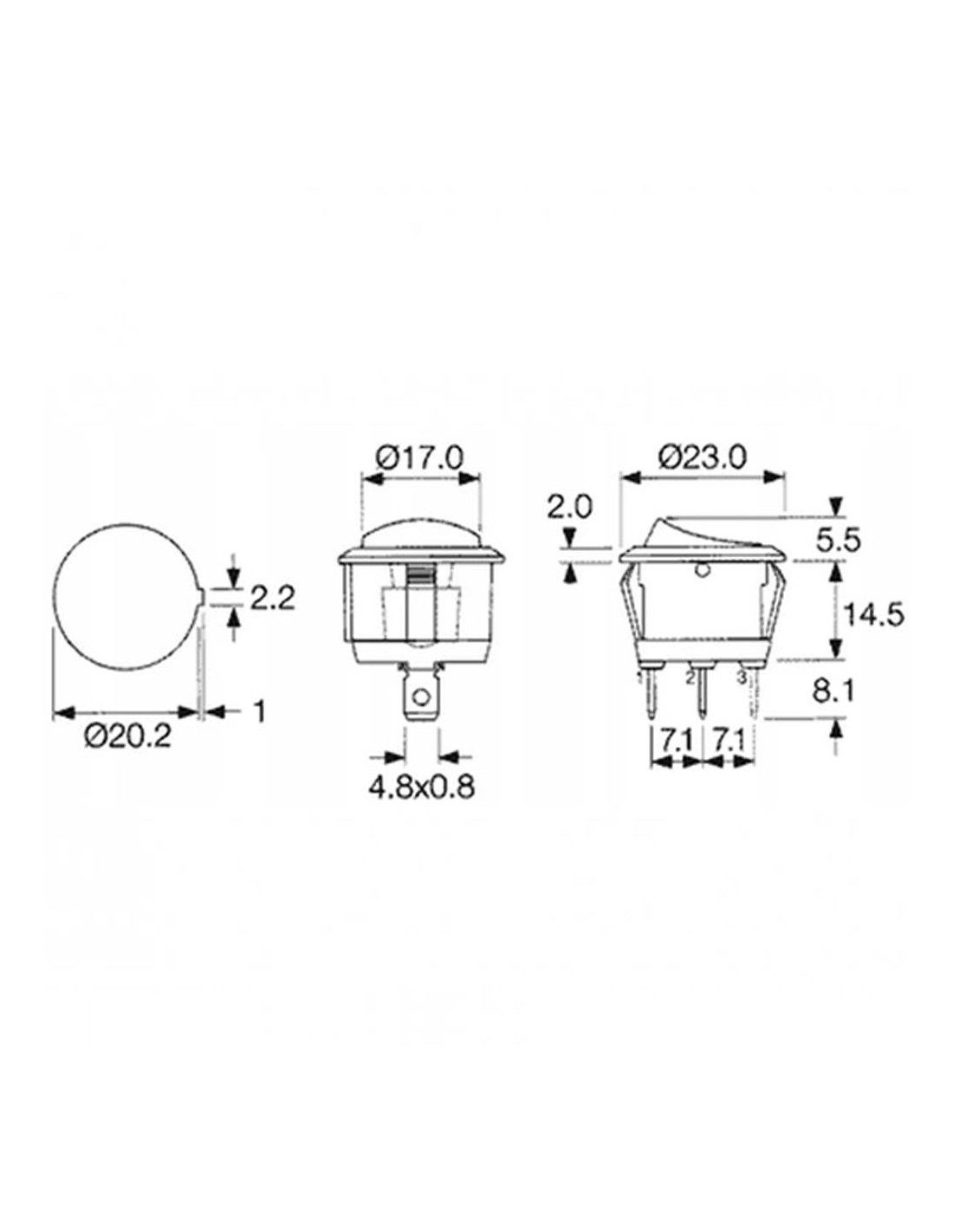

Round rocker toggle switch: the drawing marks a Ø23 mm bezel, Ø20,2 mm mounting hole, Ø17 mm body and 4,8x0,8 mm contacts. Measure your panel hole before ordering.

• This kind of switch is pressed into the panel hole and clips in place by itself – no screws needed, so it is fitted where there is little room behind the panel
• The drawing shows the mounting hole separately: a Ø20,2 mm circle with one flat side, marked "2,2 and 1" there – the flat keeps the switch from turning in the hole

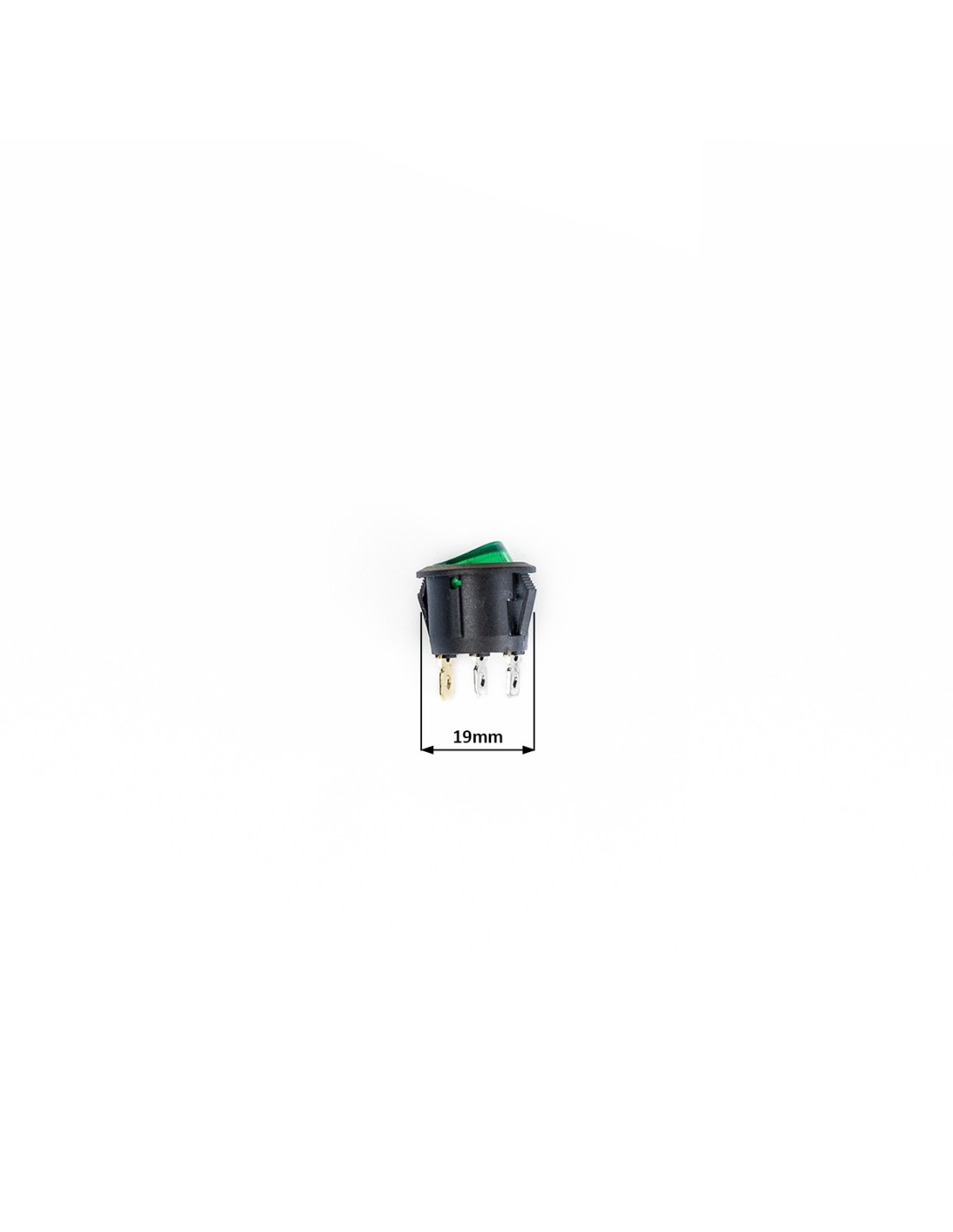

• Another view marks three heights in a vertical dimension chain – 5,5 mm, 14,5 mm and 8,1 mm – plus 2,0 mm at the bezel edge; a separate photo marks a further 19 mm – those arrow ends rest on the outer edges of the body at the retaining tabs, not on the drawing's diameters
• There are three contacts, numbered 1, 2 and 3; the gaps between them are marked 7,1 mm and 7,1 mm, and the contact itself measures 4,8x0,8 mm

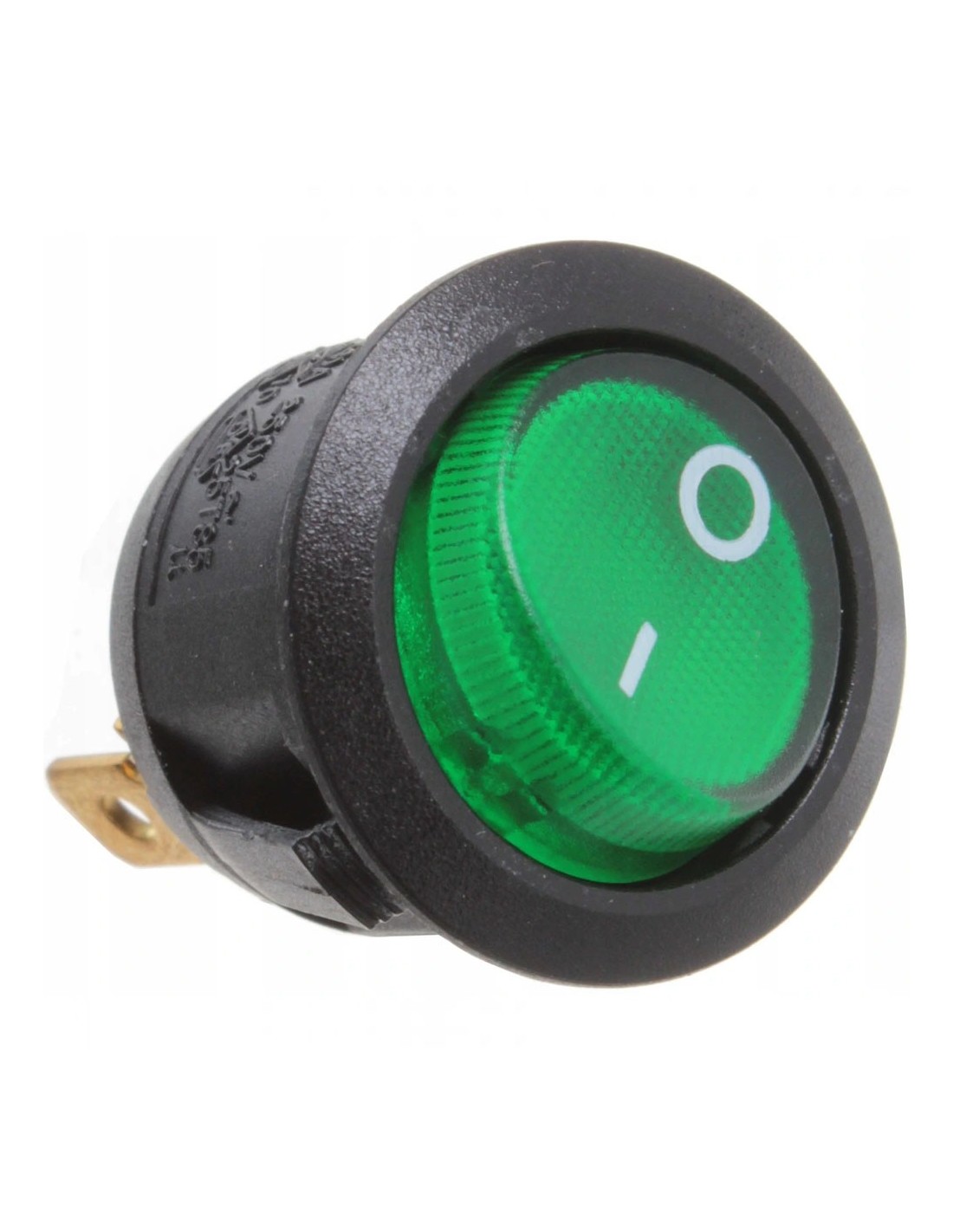

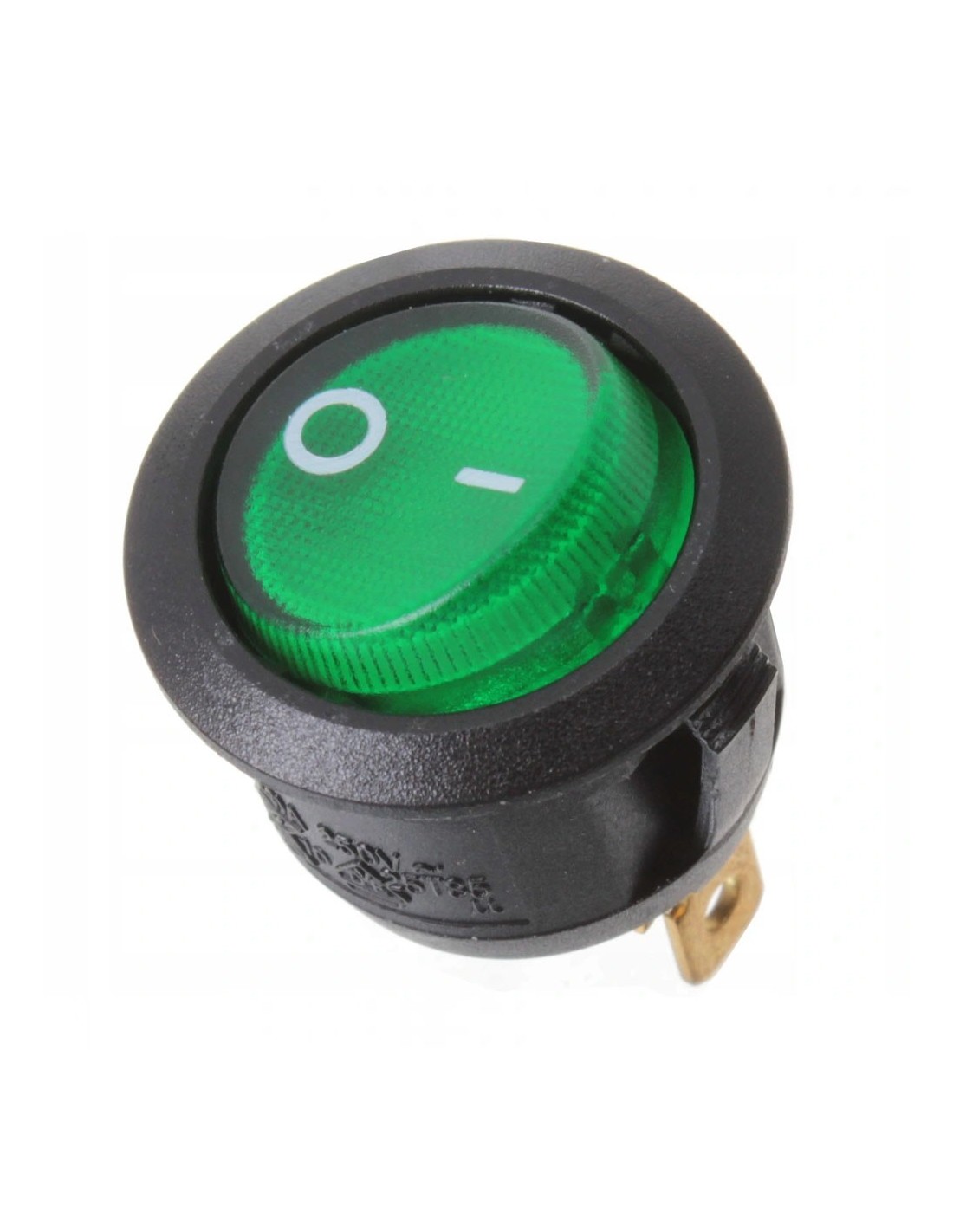

• The rocker is green, translucent, with the markings O and I; the body is black

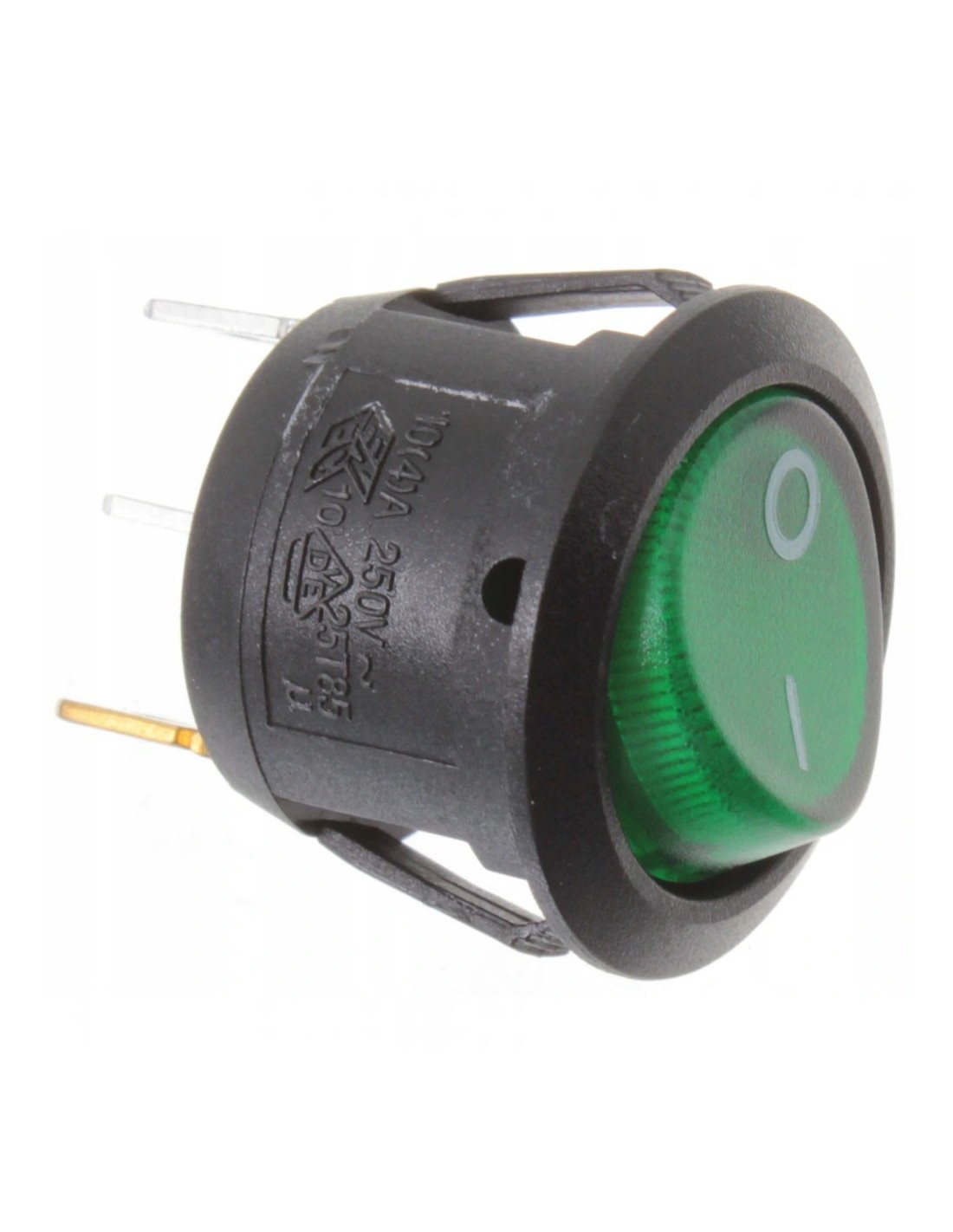

• Cast on the body: 10(4)A 250V~ and T85 – these are AC mains ratings, and there is no 12 V marking anywhere on this switch
• The photo gives no wires, no bulb type and no DC data
• Supplier code WI KGO2310 – quote it again when ordering

To be straight with you: which of the three contacts is common and which two are switched is not written on the body, and we do not guess. The product is marked for 250 V AC only; how much it withstands in a motorcycle's DC circuit, the maker did not state. Before ordering, measure your panel hole, send us a photo of the old part – we will check it before you order.
