Front sprocket mounting element axle D17

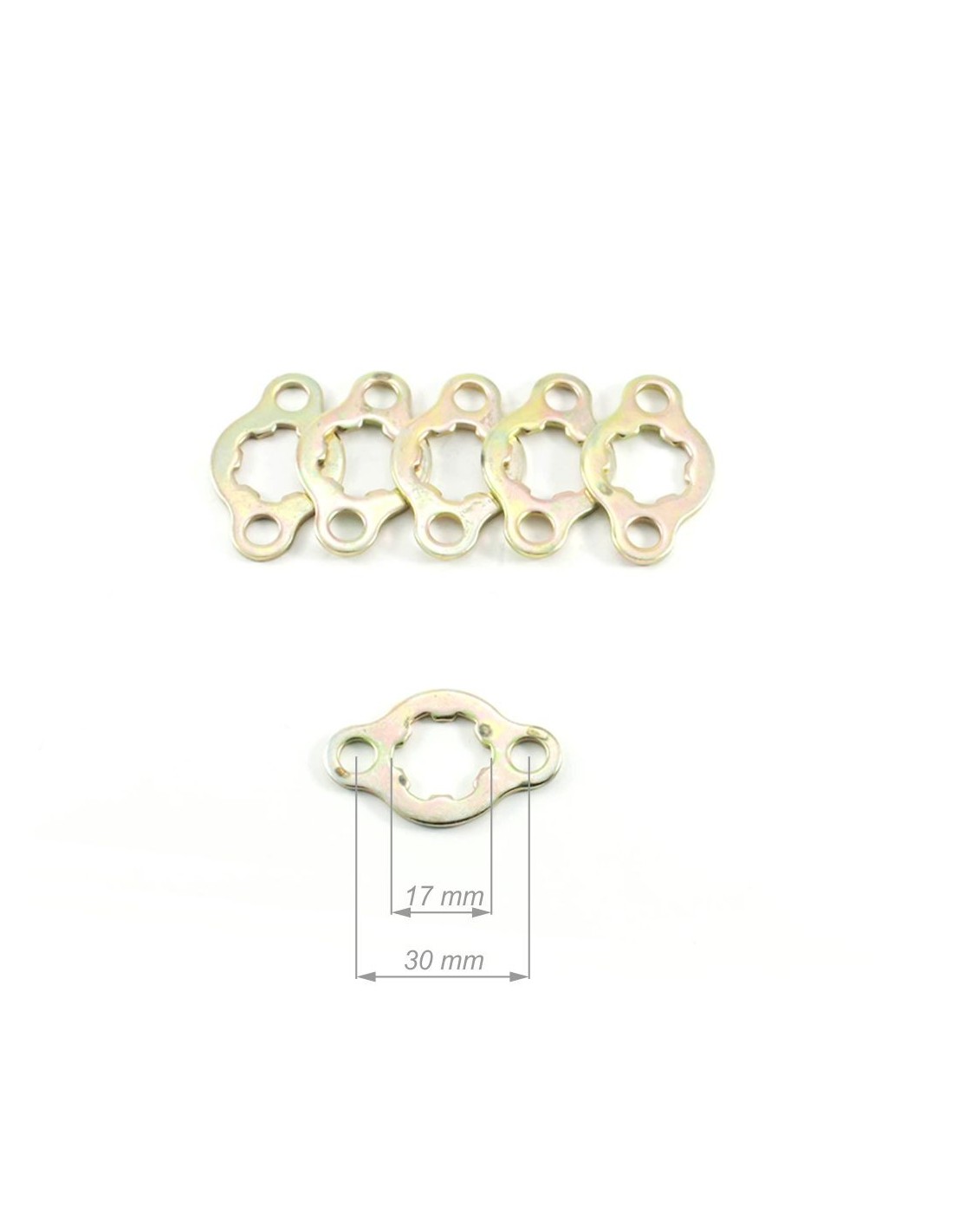

Front sprocket mounting element, in the name marked as axle D17 — in the photo the same figure stands by the inner hole. A flat plate, holes 30 mm apart.

• Two sizes are written in the photo: a 17 mm inner hole and 30 mm between the two mounting holes
• The photo shows the part to be a flat plate with a splined inner hole and two bolt holes. It clamps the front sprocket to the shaft so that it cannot slide off
• Several plates are shown in the photo, but how many you get when you order, the maker did not mark
• The second size in the same range is D20 — both the inner hole and the hole spacing differ, so the two cannot be mixed up
• Time to replace it when the plate is bent, when the bolt holes have opened out or when the splines are worn

To be straight with you: the thickness of the plate and the thread of the bolt the maker did not mark. Which exact model the element is for, the maker did not state — it is picked by the splines on the shaft and by the hole spacing. Before ordering, measure the inner hole of your old plate and the distance between the bolts — or send a photo: we will check it before you order.
