Rubber-metal bushing for shock absorber D10

Rubber shock absorber bush D10: there is no steel outer ring — rubber on the outside, a brass inner for the bolt. 25 mm across, 21 mm high, 10 mm hole.

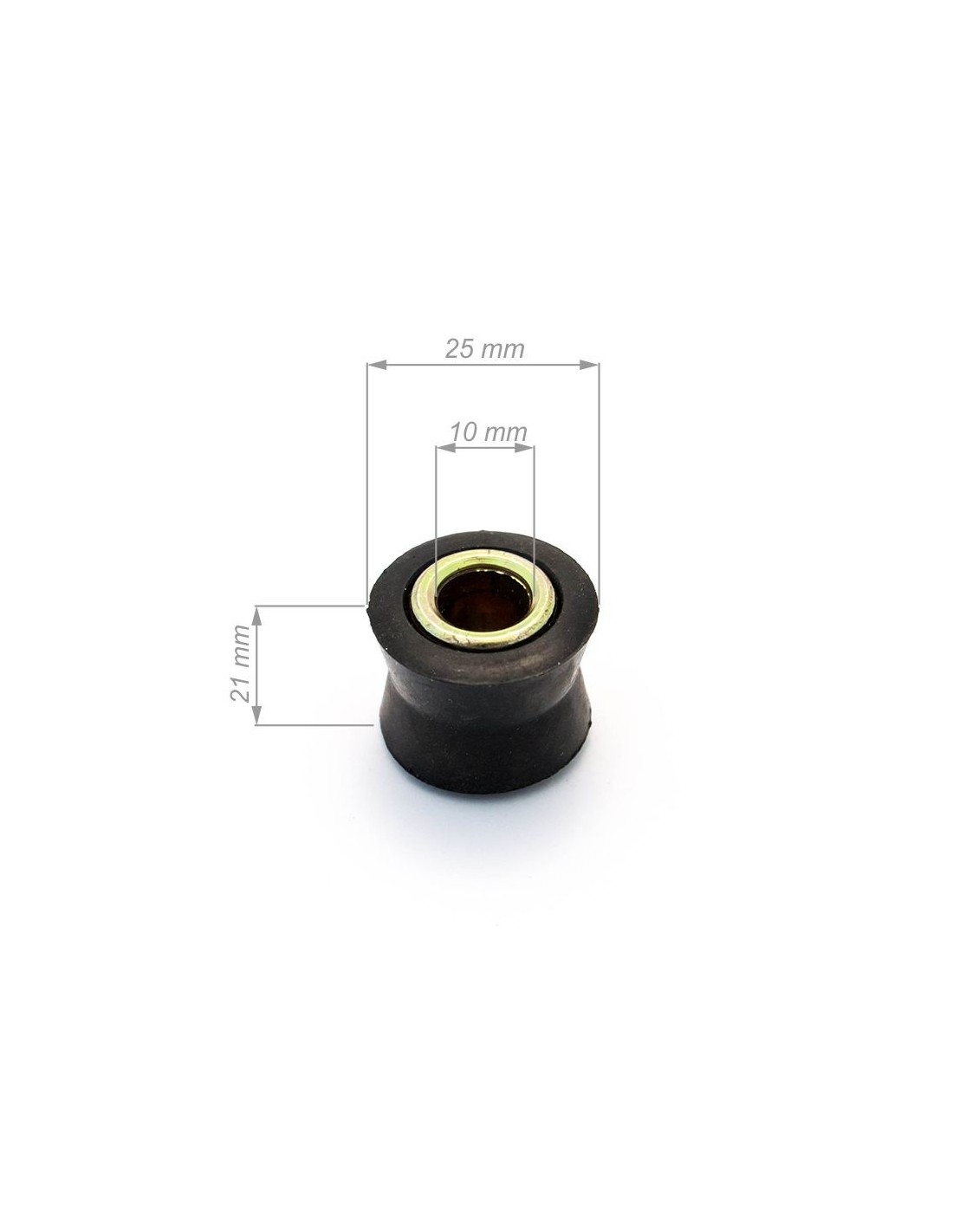

• The drawing marks 25 mm of diameter at the widest point, a 10 mm hole and 21 mm of height — of those three figures only the D 10 mm is in the name
• The rubber body is waisted in the middle, with a wider flange at the top; the brass inner sticks out through the hole
• The very same rubber bush with a 12 mm hole is in the same category — it differs from this one in the hole alone
• Torn or hammered-out rubber gives itself away by knocking and play: shake the arm with your hands — if you can feel play in the bush, it is worn
• Supplier code WI ZC6103 — quote it when you reorder

To be straight with you: all the maker's data says is that the bush is for a shock absorber; which machine and which shock absorber, it does not. Write us your model and year, or send a photo of the old part. Before ordering, drive the old bush out or measure its seat: check the diameter of the lug hole, the length of the bush and the thickness of the bolt with a caliper — we will check it before you order.
