Pair of steering tie rod ends ATV B-C variant

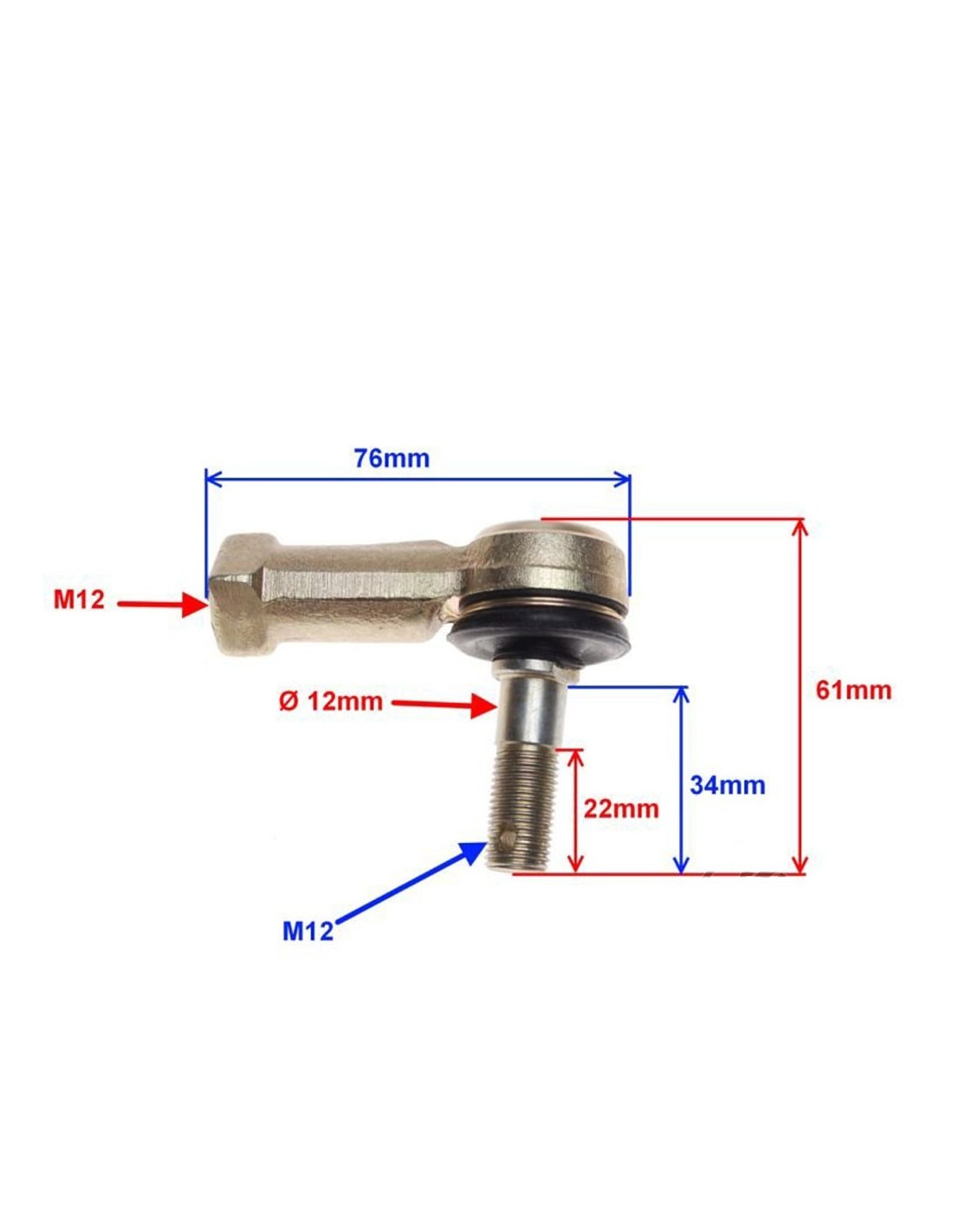

ATV steering tie rod end pair, B-C variant: the photo marks: 76 mm length, 61 mm height, a Ø 12 mm pin, and an M12 thread on both the shank and the pin.

• In this listing both threads are the same — M12 on both the shank and the pin. That is how it differs from the B variant, where the shank is M12 and the pin M10, and from the two pairs where both threads are M10
• The Ø 12 mm arrow rests on the smooth part of the pin under the cap, 34 mm measures the whole pin, and 22 mm its threaded part
• The photo shows a hex head on the housing — you can hold it with a wrench when unscrewing the lock nut
• The end is chosen by two things: the thread size at the rod's end and the pin thread by which it is fastened to the lever. If even one does not match, the part stays on the shelf
• On steering rods, one end usually has a left-hand thread and the other a right-hand thread: this lets the rod's length be adjusted without turning the ends themselves. Turning the rod moves both ends at the same time
• The shop has four steering tie rod end pairs, and they sit in two places: two in the "Chassis & suspension" section and two in the "Tie rods" subcategory. A related joint set sits in a third — the "Joints" subcategory
• Time to replace it is when moving the end by hand you feel play, when the rubber cap is torn, or when the steering moves freely before the wheels turn
• Supplier code WI ZQ5135+ZQ5135B — quote it again when ordering

To be straight with you: which thread is left-hand is not marked in the photo. Which specific model and which years this part is meant for, the maker did not specify, and we do not guess — but comparing dimensions is something we can do: write us your model and year. Before ordering, measure your old rod's thread diameter and the pin thread — or send us a photo: we will check it before you order.
