Piston HONDA DIO AF 18-47,00 SEE TW - Image 1
Pistons

Piston HONDA DIO AF 18-47,00 SEE TW

Article no. 8100428
13 €
Prices incl. VAT
In stock — Šakiai

Order by 16:00 — Omniva ships today

1
Not sure it fits your bike? Ask our mechanics or see our fitment-by-VIN FAQ
Same-day dispatch — order by 16:00
24-month guarantee
14-day returns
In stock in Šakiai

Product information

Piston for a HONDA DIO AF 18 engine, 47,00 mm in diameter. The photo marks five dimensions, and the first two to use when choosing are the diameter and the pin bore.

  • The piston is replaced together with the rings when the cylinder is replaced or after it has been reground: once worn, it loses its seal, compression drops, a knocking noise appears in a cold engine and oil consumption rises
  • What "SEE TW" at the end of the name means, the maker did not write, and we do not guess — the same marking stands next to other items in this list

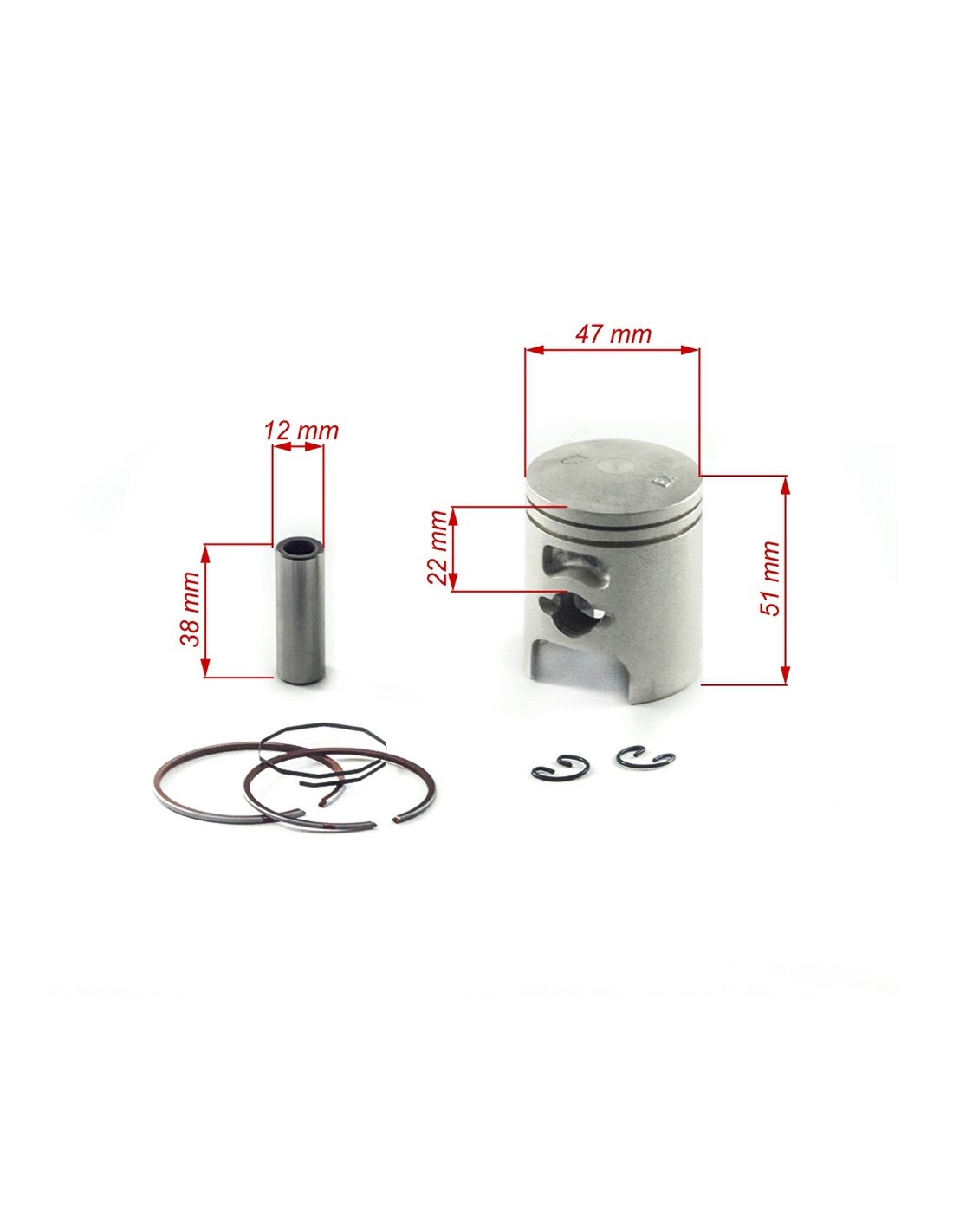

  • The photo marks: diameter 47 mm, from the crown to the pin axis 22 mm, overall height 51 mm, pin diameter 12 mm, pin length 38 mm
  • The photo shows a kit: piston, gudgeon pin, three rings and two circlips
  • The same HONDA DIO AF 18 line in the catalogue: 39,00, 43,00 and 47,00 mm. All three are photographed laid out the same way, but the photos differ — these are separate pictures, not one file
  • The photo itself has no scale reference: no ruler, no object placed for comparison. Only the numbers listed in the notes give the size, so measure your cylinder bore
  • If the piston is still sound and only the compression is dropping, rings alone may be enough: rings of the same 47,00 mm diameter are in the catalogue — "Piston ring set GY6 4T 80cc 47,00mm" — but that is a set from the different GY6 4T line; whether it fits your engine, the maker did not write — write us your model, we will check
  • You will recognise a worn piston by a rubbed-through side, too large a gap in the rings and imprinted marks around the gudgeon pin bore; the rings are always replaced together with the piston
  • Supplier code MC 02662 — state it again when ordering

To be straight with you: which exact model and which years it fits, the maker did not write, and we do not guess — write us your model and year. Before ordering, measure your cylinder bore and the diameter of the old pin — or send a photo with callipers: we will check it before you order.
