Mini bike brake caliper left side

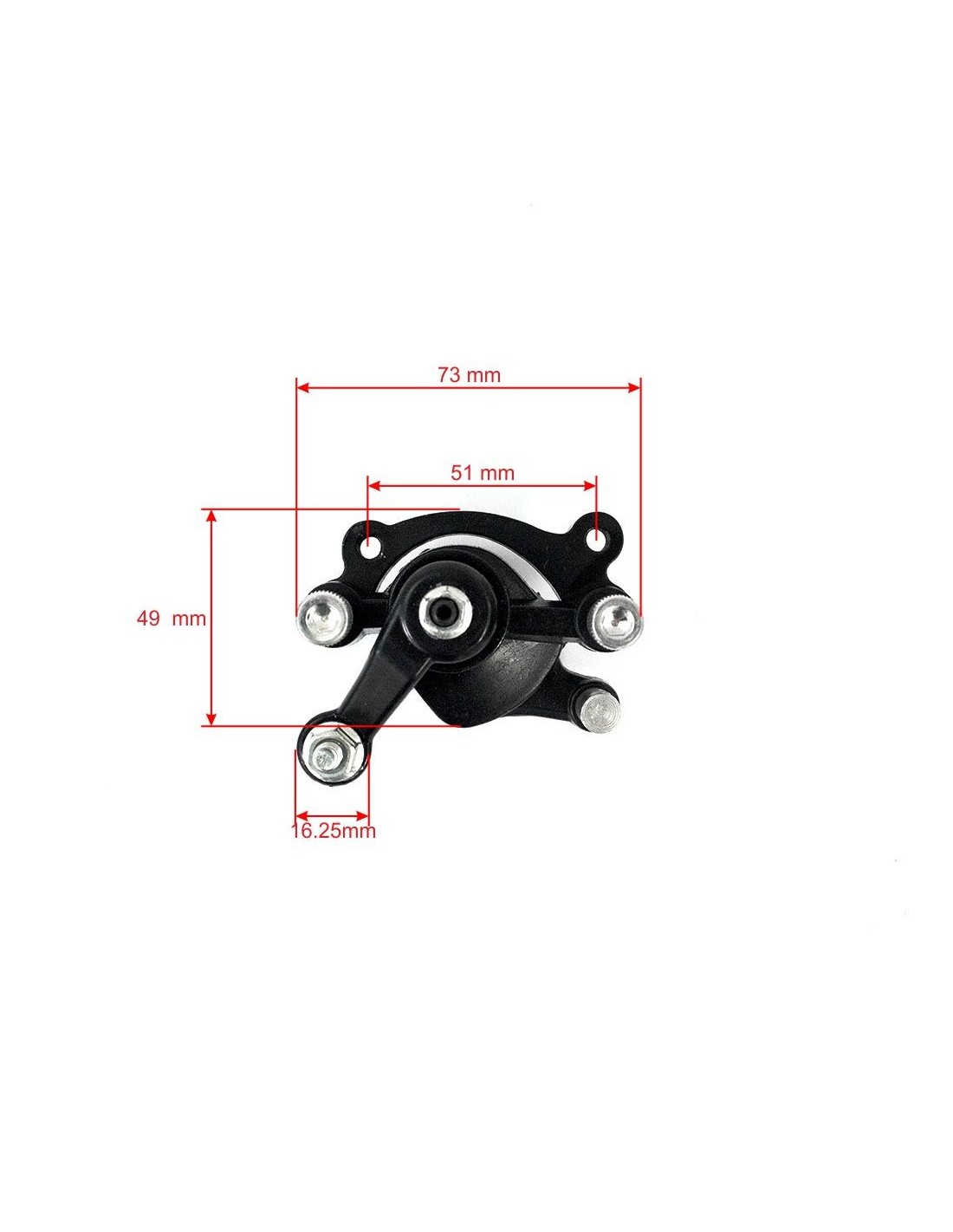

Mini bike brake caliper, left side. The mounting-hole spacing marked in the photo is 51 mm – start choosing from that.

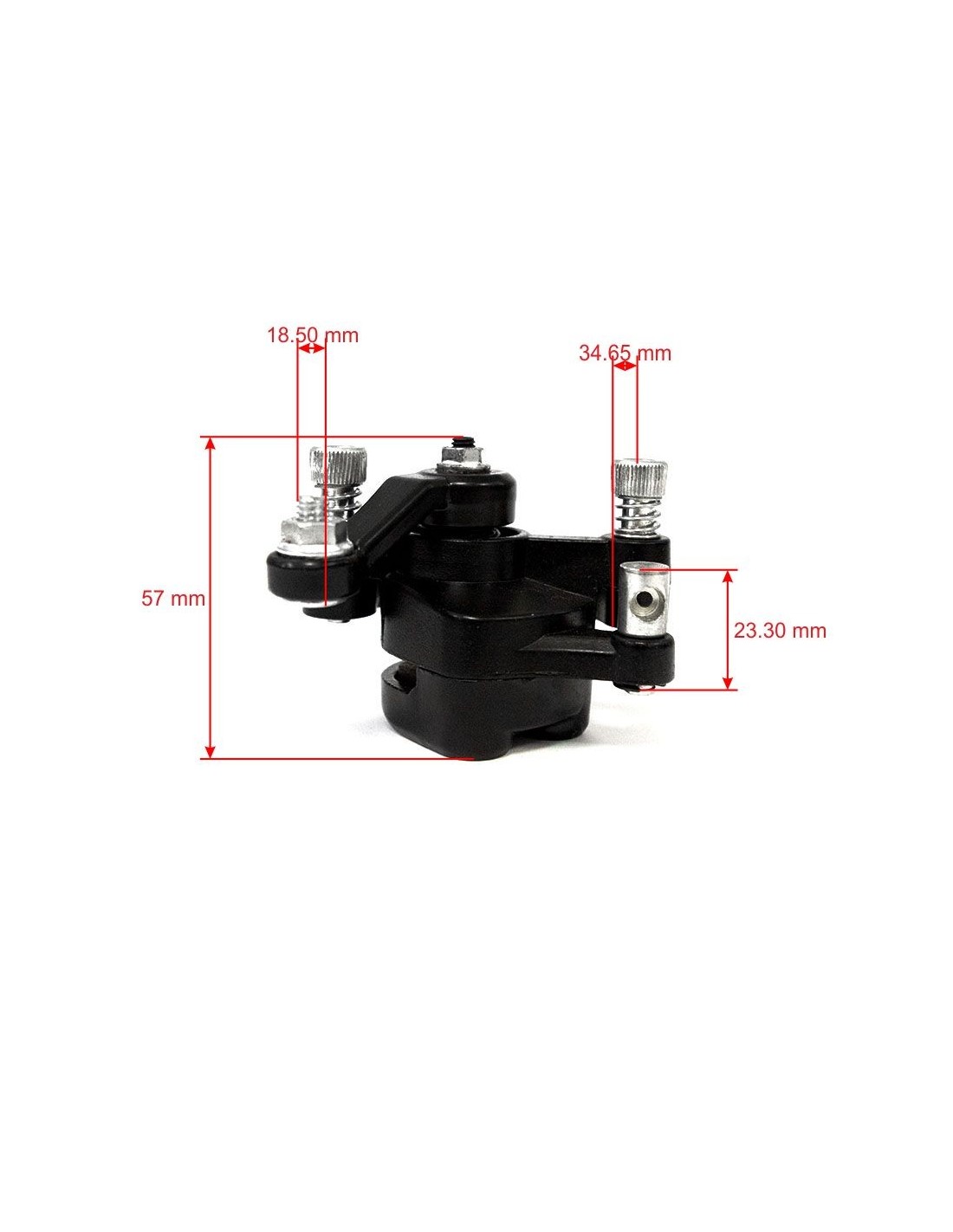

• Other marked numbers: 73 mm, 49 mm, 57 mm, 34,65 mm, 23,30 mm, 18,50 mm and 16,25 mm
• What each dimension measures, the manufacturer didn't write, so we don't assign meanings to them – we compare number against number
• The part is black, mechanical: two silver adjustment screws with knurled heads and a cable clamp; there's no hydraulic hose here
• The right-side caliper is a separate item in the catalogue – "Mini bike brake caliper right side"; the numbers on both are the same, and the photos are mirrored
• The caliper is replaced not because of wear on its own, but when the piston sticks, fluid seeps past the seal, or the pad pin has broken off; the pads themselves are a separate replaceable part
• Supplier code AT WI PKB4101 DALIS OB-39 – quote it again when ordering

We say it straight. Not one written dimension tells the left side apart from the right – only the side itself differs. Which specific model and year it's for, the manufacturer didn't write, and we don't guess it ourselves – write us your model and year. Before ordering, measure your caliper's mounting-hole spacing, their thread and the disc thickness – or send a photo: we'll check before you order.

24-month warranty · tel. +370 685 777 56
