Mini bike brake caliper right side

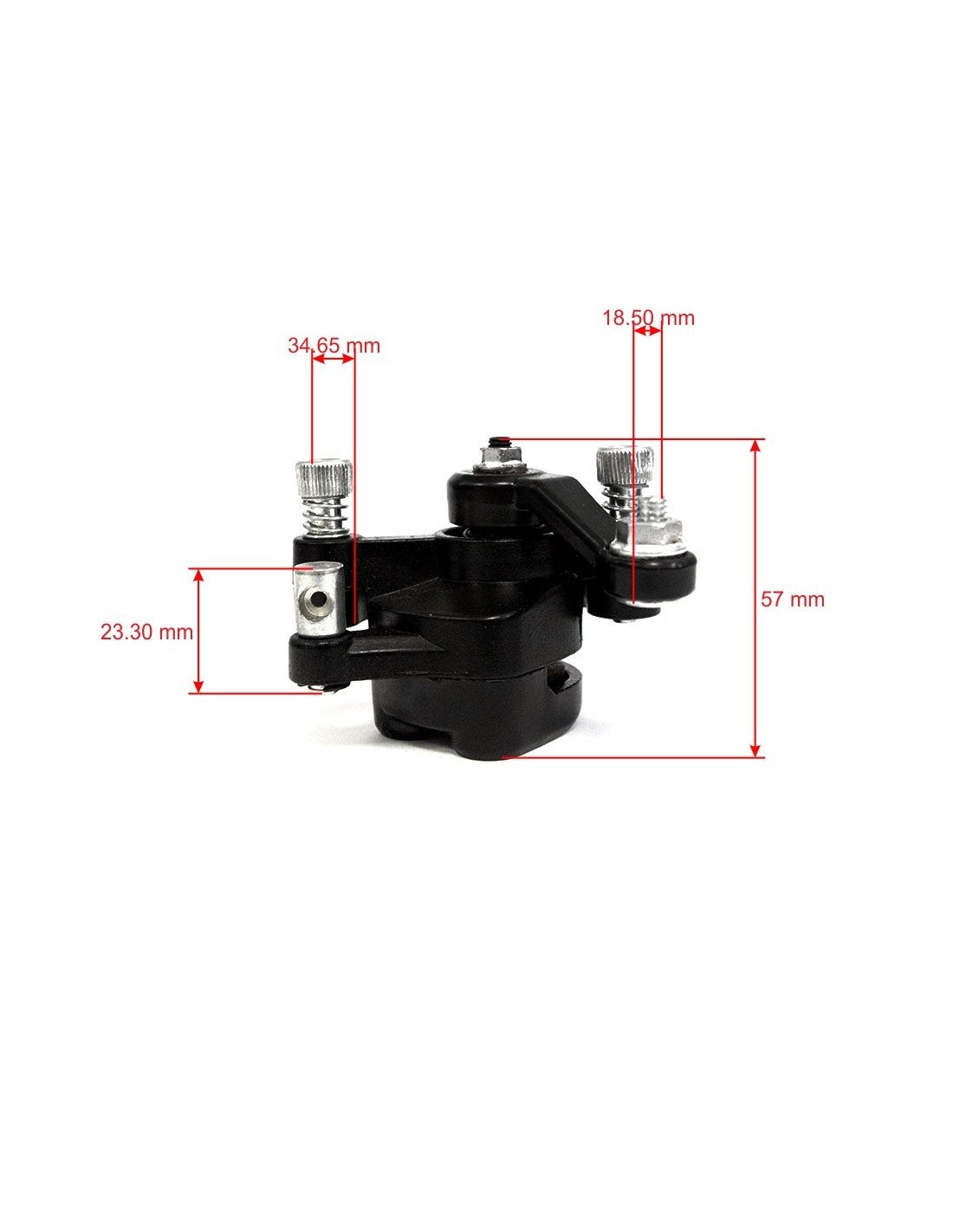

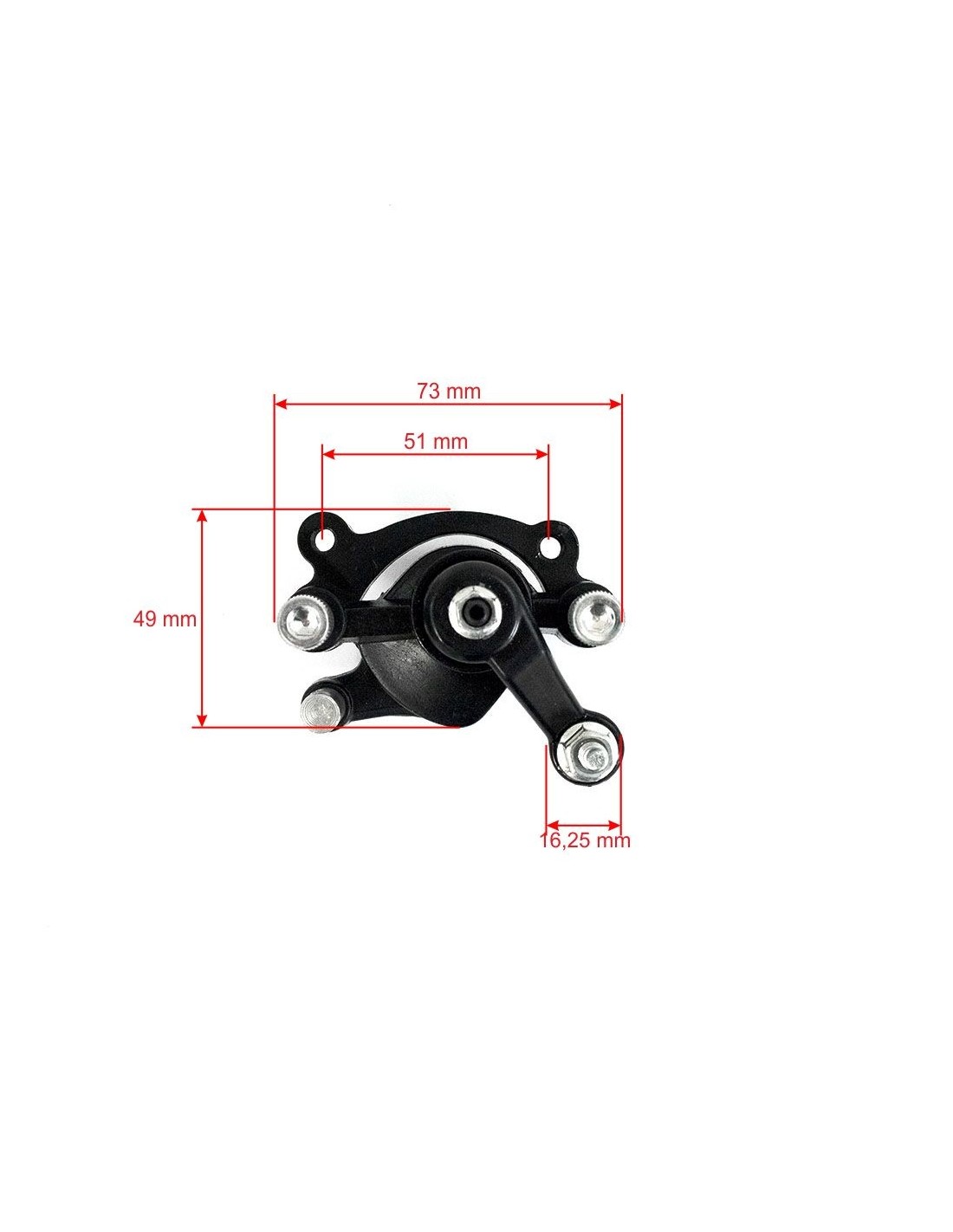

Mini bike brake caliper, right side. Eight dimensions are marked in the photos, and the important one when choosing is the mounting hole spacing – 51 mm.

• The other marked figures: 73 mm, 49 mm, 57 mm, 34,65 mm, 23,30 mm, 18,50 mm and 16,25 mm
• What each dimension measures, the maker did not write, so we do not assign meanings to them – we simply match number to number

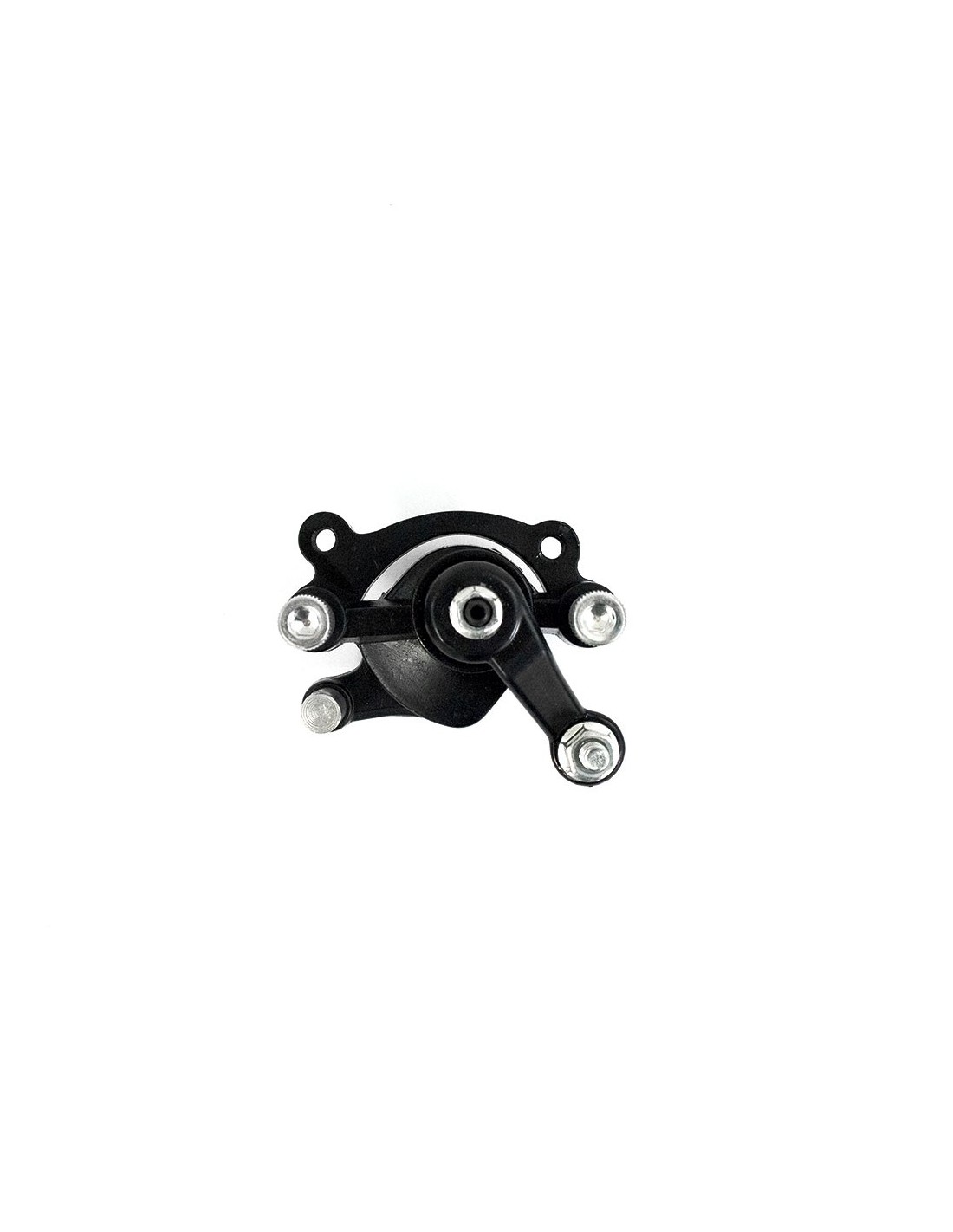

• The item is black, mechanical: the photo shows two silver adjustment screws with knurled heads and a cable clamp – there is no hydraulic hose here
• The left-side caliper is a separate item in the list – "Mini bike brake caliper left side"; its photos show exactly the same eight numbers, and the photos are mirrored, so choose the side by your machine, not by the dimensions
• The caliper is replaced not because of wear but when the piston sticks, fluid seeps past the seal, or the pad pin has broken off; the pads themselves are a separate, replaceable part
• Supplier codes AT DALIS OB-39 · WI PKB4102 – quote them again when ordering

To be straight with you: not one written dimension tells the right side from the left – only the side itself differs. Which exact model and year it is for, the maker did not write, and we do not guess – write us your model and year. Before ordering, measure your caliper's mounting hole spacing, their thread and the disc thickness – or send us a photo: we will check it before you order.

24-month warranty · tel. +370 685 777 56
