Cylinder head PIAGGIO NRG 50cc LC 5-corner SEE TW

Cylinder head for a PIAGGIO NRG 50 cm³ engine – a 5-corner, 100 mm wide body, liquid-cooled: there are no fins, and there are two spigots for hoses.

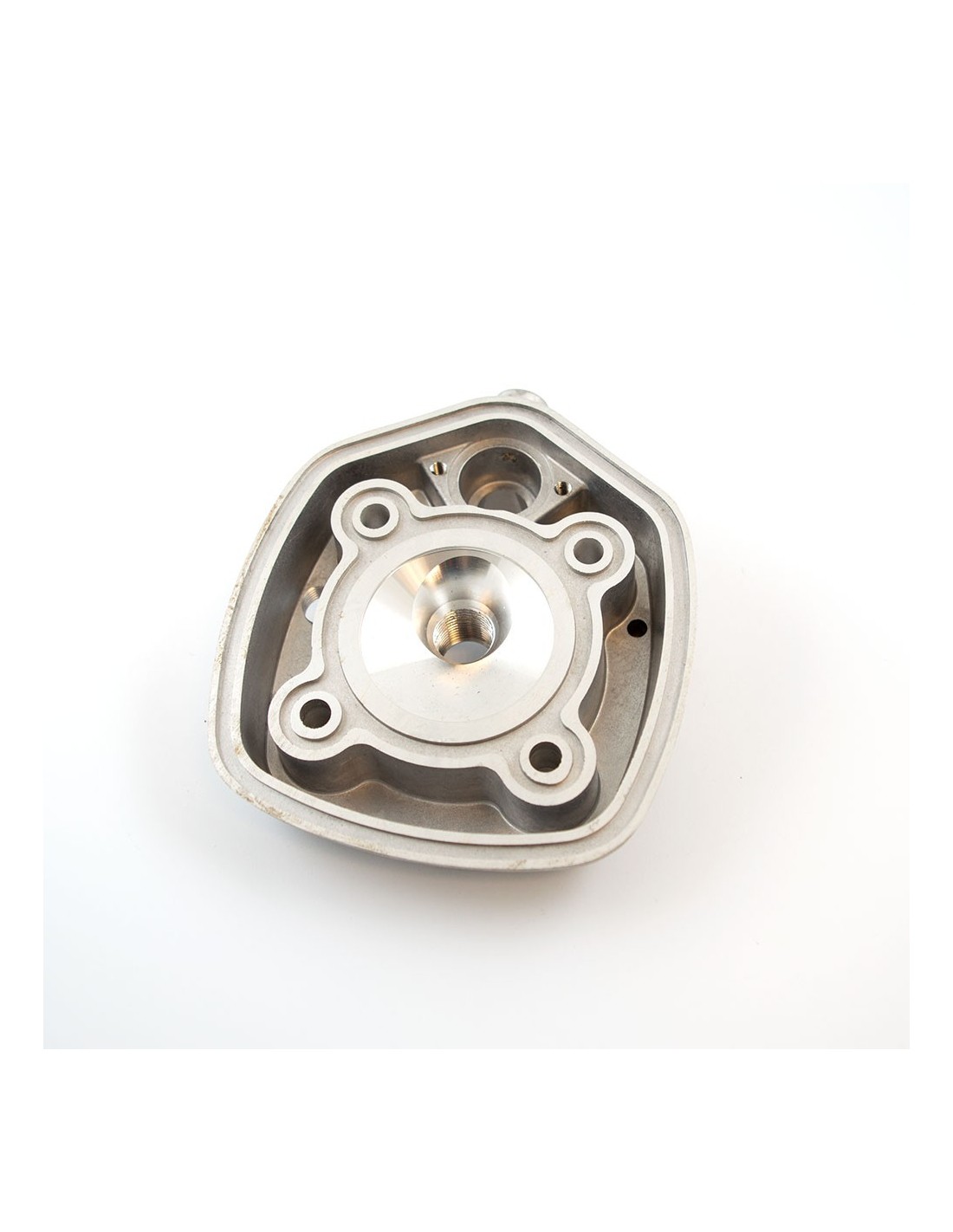

• The body shape is five-cornered – count five rounded corners in the photo; that is exactly what "5-corner" marks in the name

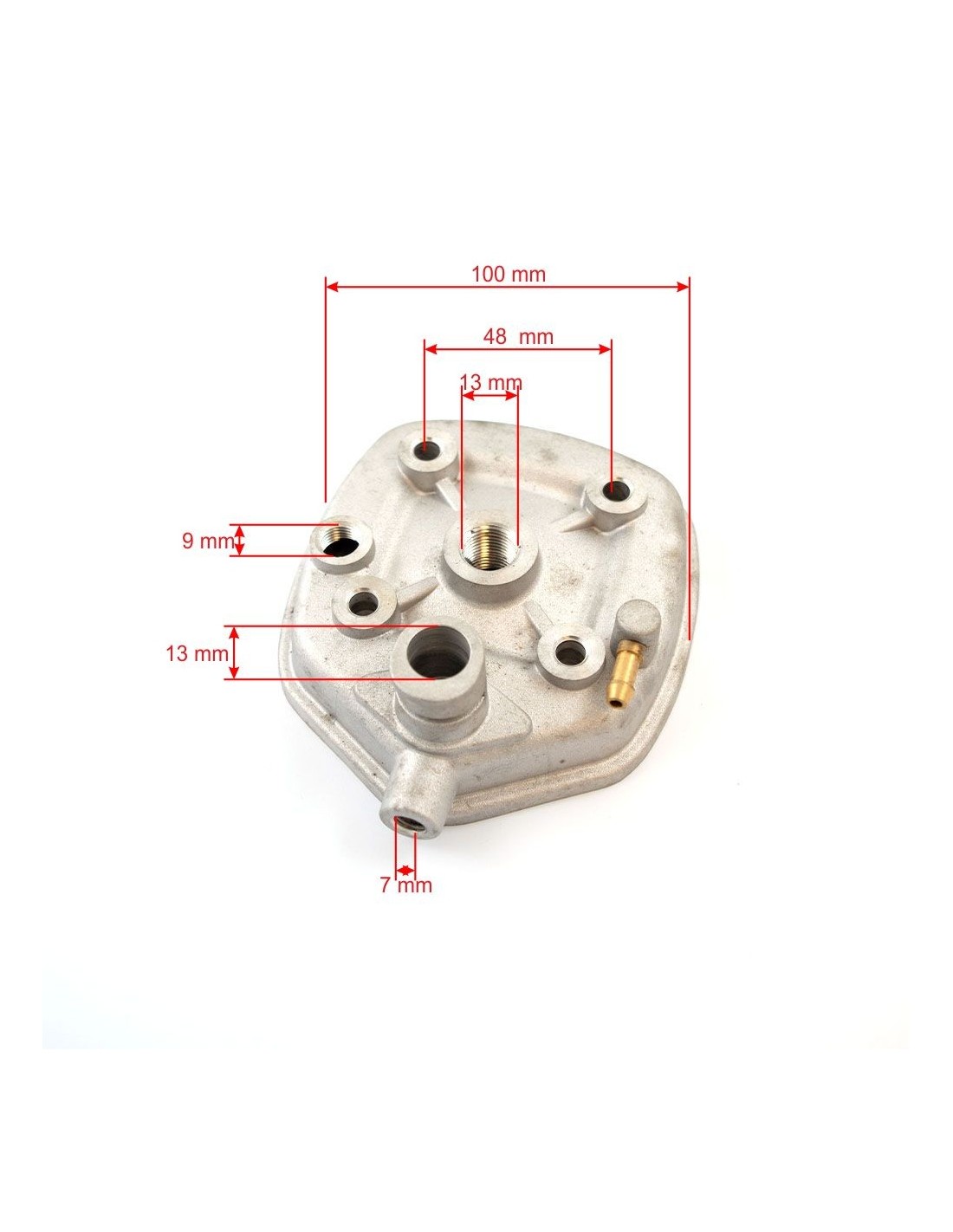

• In the drawing: overall width 100 mm, 48 mm between the two mounting holes, central threaded hole 13 mm, bottom hole 13 mm, threaded hole on the side 9 mm, bottom spigot hole 7 mm
• There are no cooling fins; on the side is a brass spigot for a hose, on the bottom an aluminium spigot: liquid-cooled
• Four mounting holes around the combustion chamber; the chamber is smooth, there are no valve seats
• The same category has the NRG 70 cm³ head – its photos and drawing are exactly the same
• You will find other cylinder heads and their parts in the same category

To be straight with you: the photos of this head and the 70 cm³ head, and every figure in the drawing, match down to the last one – what sets the 50 and 70 cc heads apart, we are asking the maker. What "SEE TW" means in the name, the maker did not explain, and it does not appear in any photo either – we are asking. Before ordering, measure the top diameter of your cylinder, the mounting hole spacing and the spark plug thread, and send us a photo of the old head – we will check it before you order.
