Gear shifter footrest black

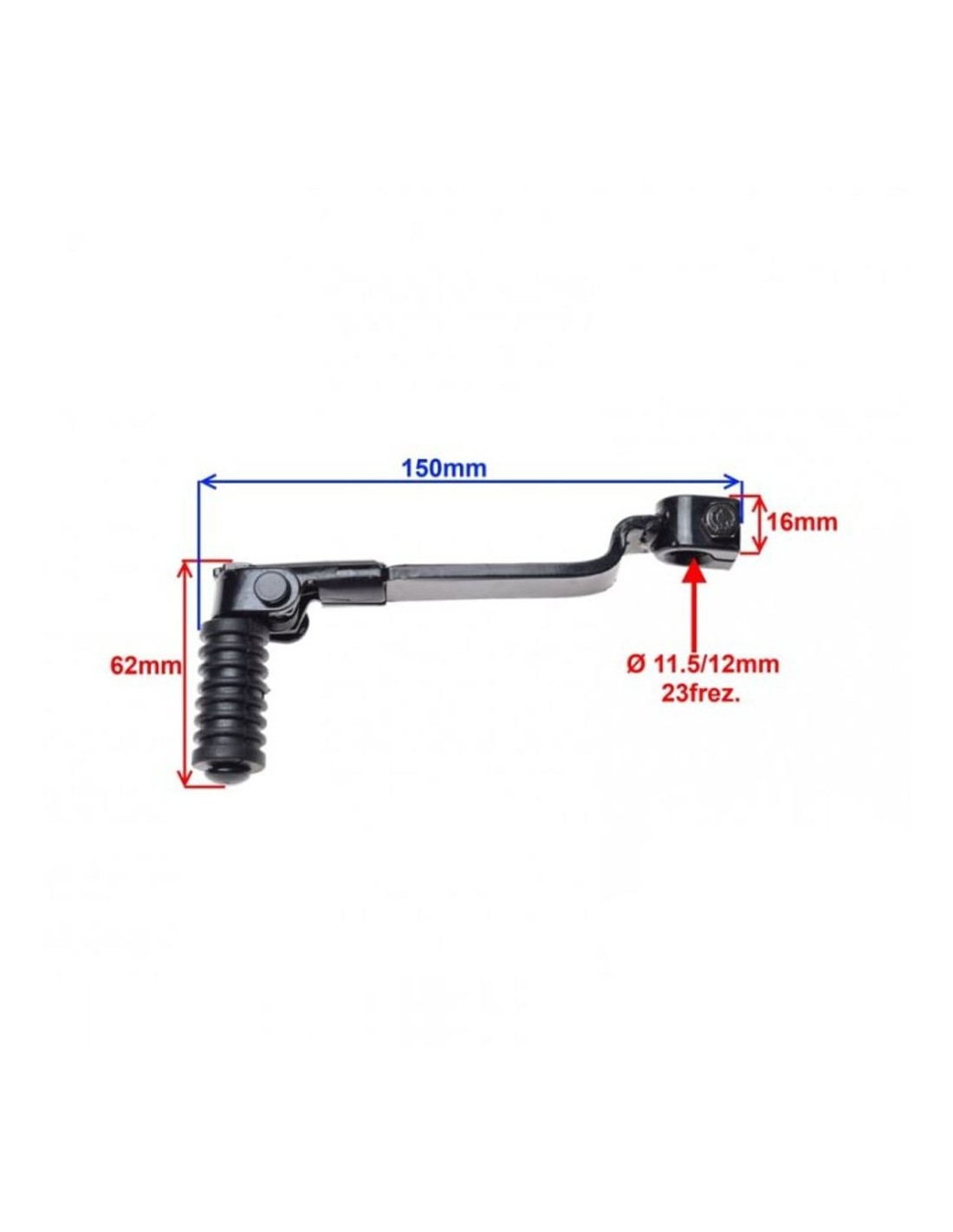

Folding gear shift lever, black: the drawing marks 150 mm, 62 mm and 16 mm, and next to the clamp hole the markings "23frez." and "Ø 11.5/12mm". Compare with your old lever before ordering.

• The lever slides onto the splines of the gear-shift shaft; the folding tip is there so that on impact it swings at the hinge instead of the whole lever bending
• By the arrow ends: 150 mm – horizontally from the tip's outer side to the clamp's outer edge, 62 mm – vertically from the top of the hinge to the end of the tip, 16 mm – the clamp's height from top to bottom
• The arrow marked "23frez." and "Ø 11.5/12mm" points to the clamp hole from below; the splines themselves are not visible in this photo
• The hinge shows a spring and a pin with a round head; the tip is black, ribbed, with a rounded end
• The clamp is split and tightened with a hex-head bolt
• The photo gives no material marking and no fitment to any model

To be straight with you: which motorcycle this lever fits is not stated in the name, and we do not guess. Why the marking gives two diameters – 11,5 and 12 mm, the maker did not explain. Before ordering, count your shaft's splines and compare with the "23frez." marking, measure the distance from the shaft to the tip, send us a photo of the old part – we will check it before you order.

24-month warranty · tel. +370 685 777 56
