Anchor with ring MTH

Anchor with ring MTH, threads from M6 to M20 and lengths from 50 to 220 mm: 22 variants on the card. Measure the thickness of the part being fastened before ordering.

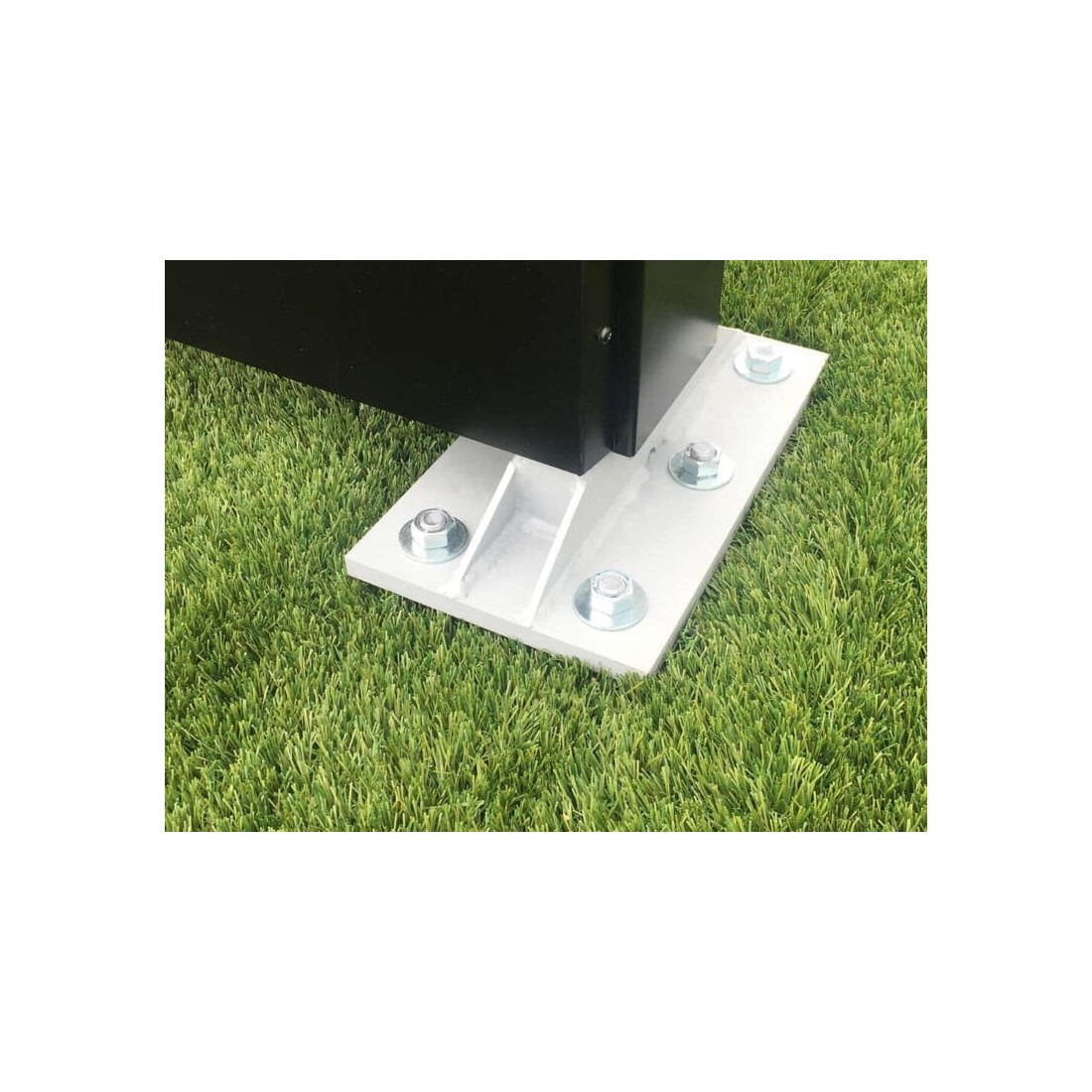

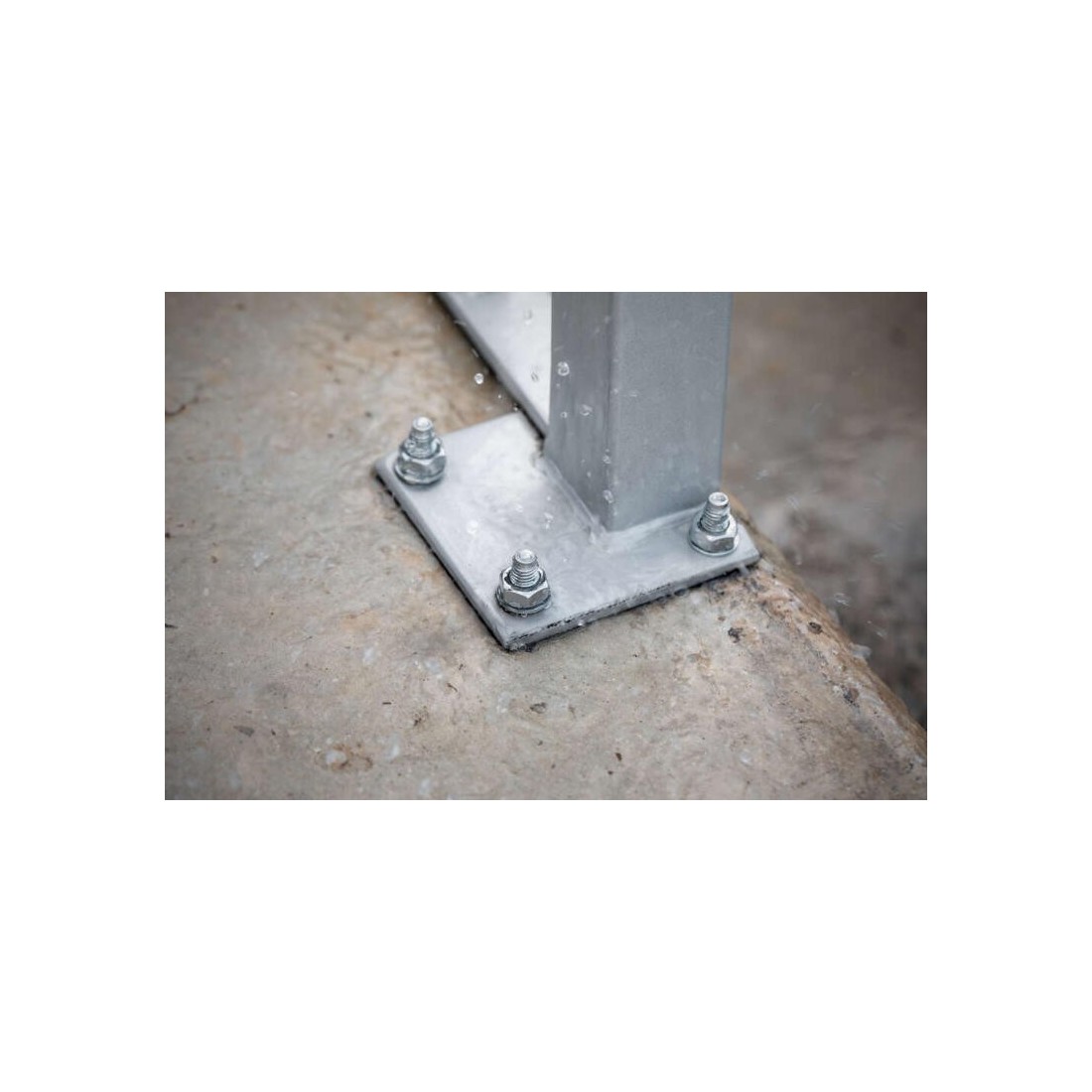

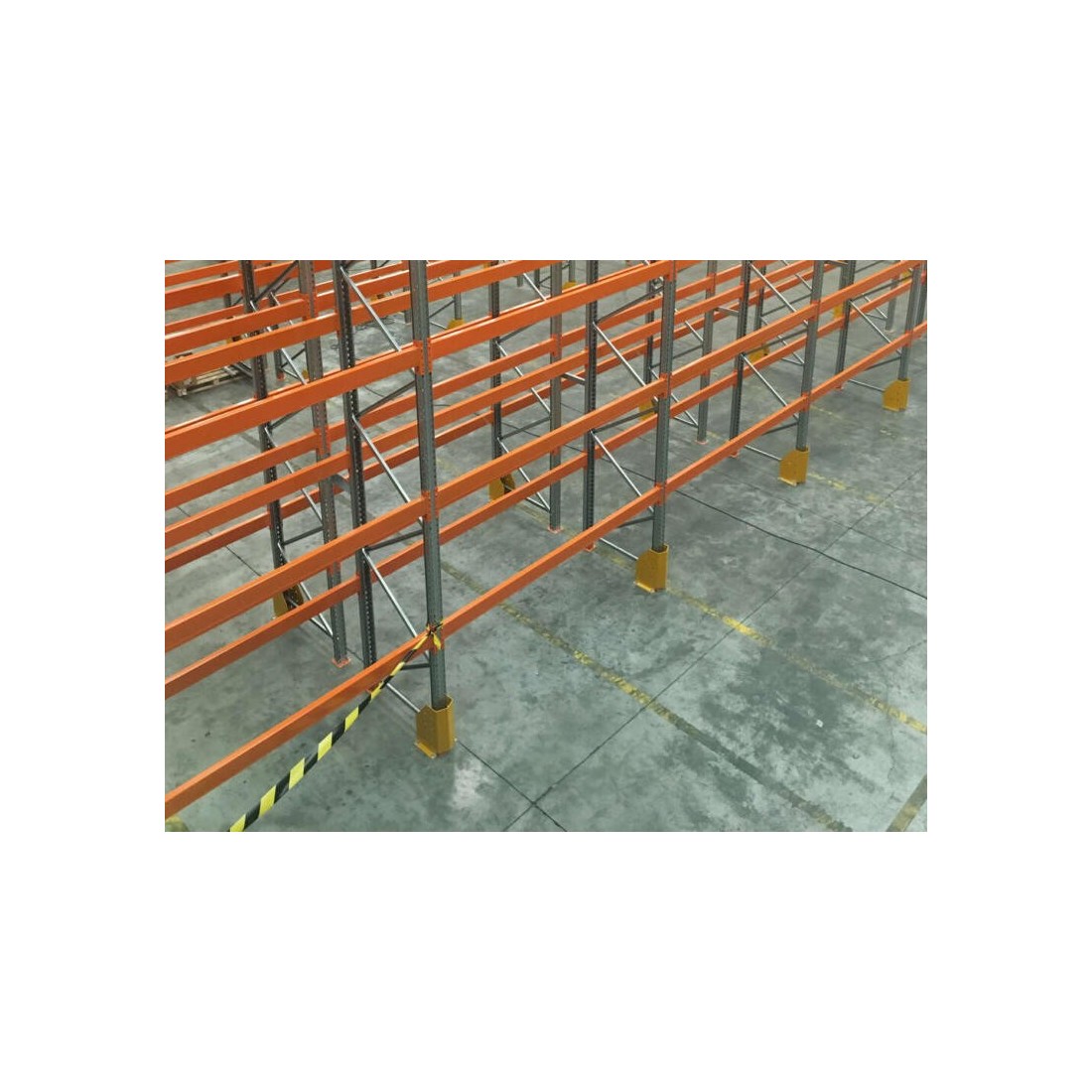

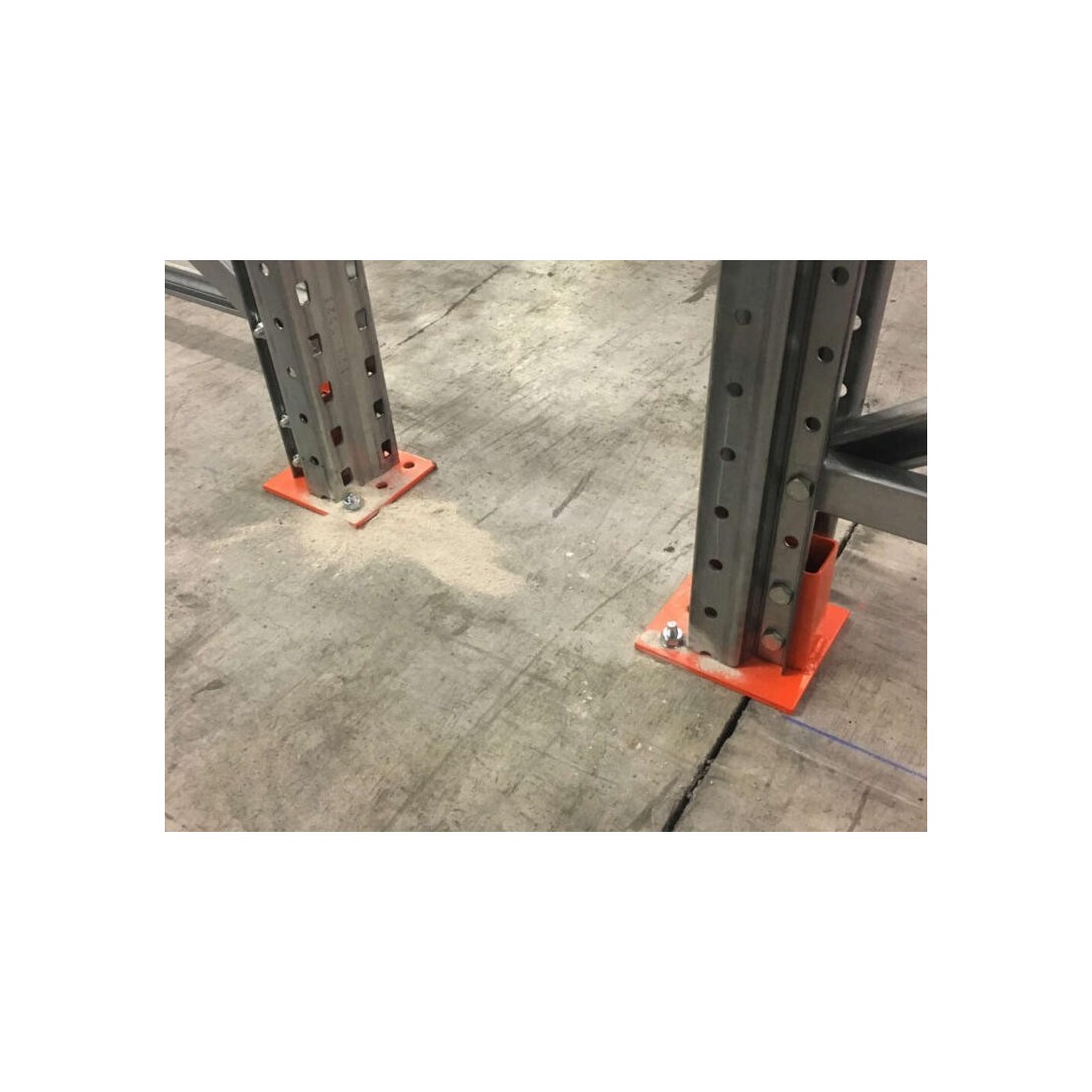

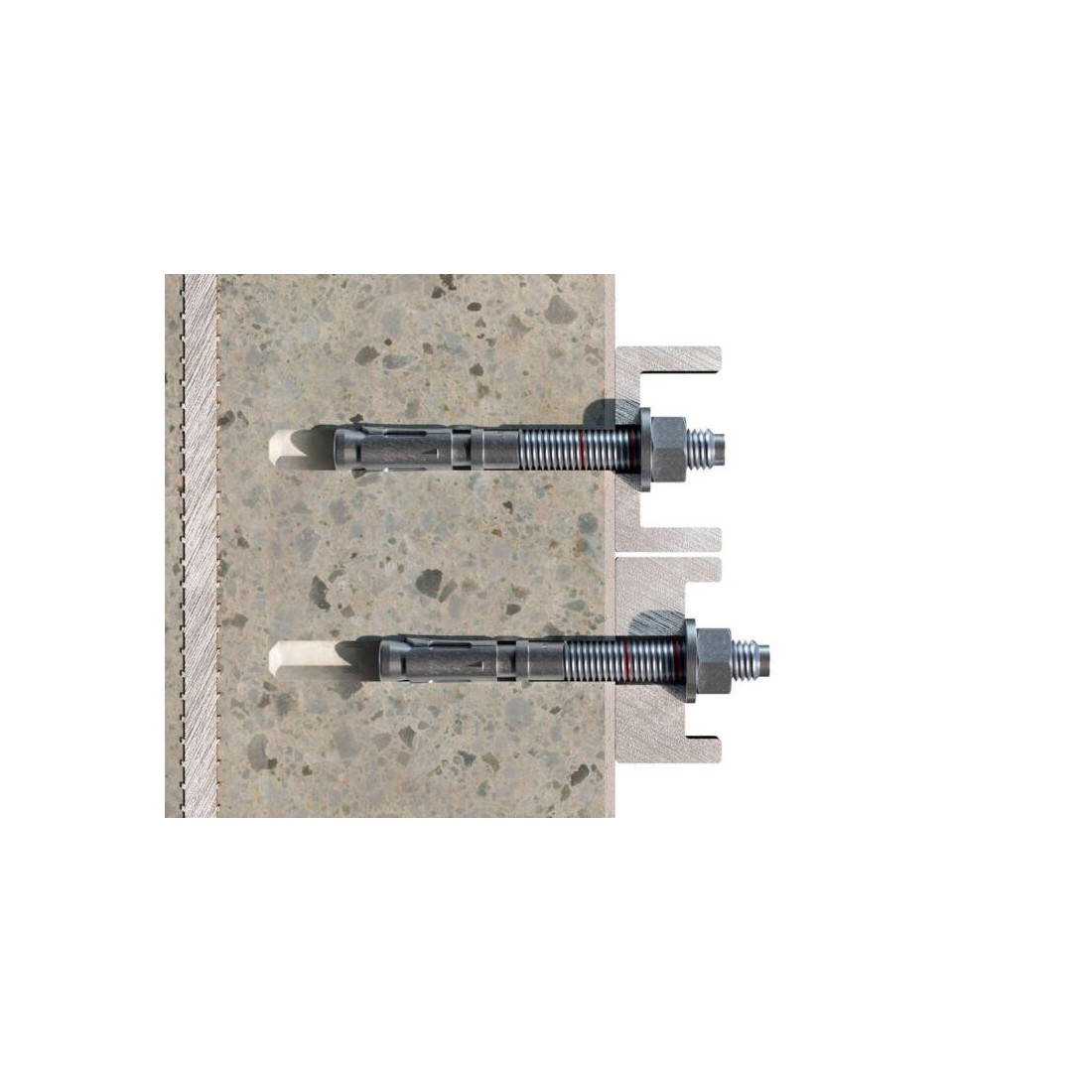

• The anchor is fixed into concrete and holds a part bolted to it — in the photos, shelf legs and post bases are fastened this way.
• Threads and lengths: M6 — 60, 80, 120 and 140 mm; M8 — 50, 75, 90 and 115 mm; M10 — 70, 90, 120 and 150 mm; M12 — 75, 90, 110 and 140 mm; M16 — 90, 145 and 170 mm; M20 — 120, 170 and 220 mm.

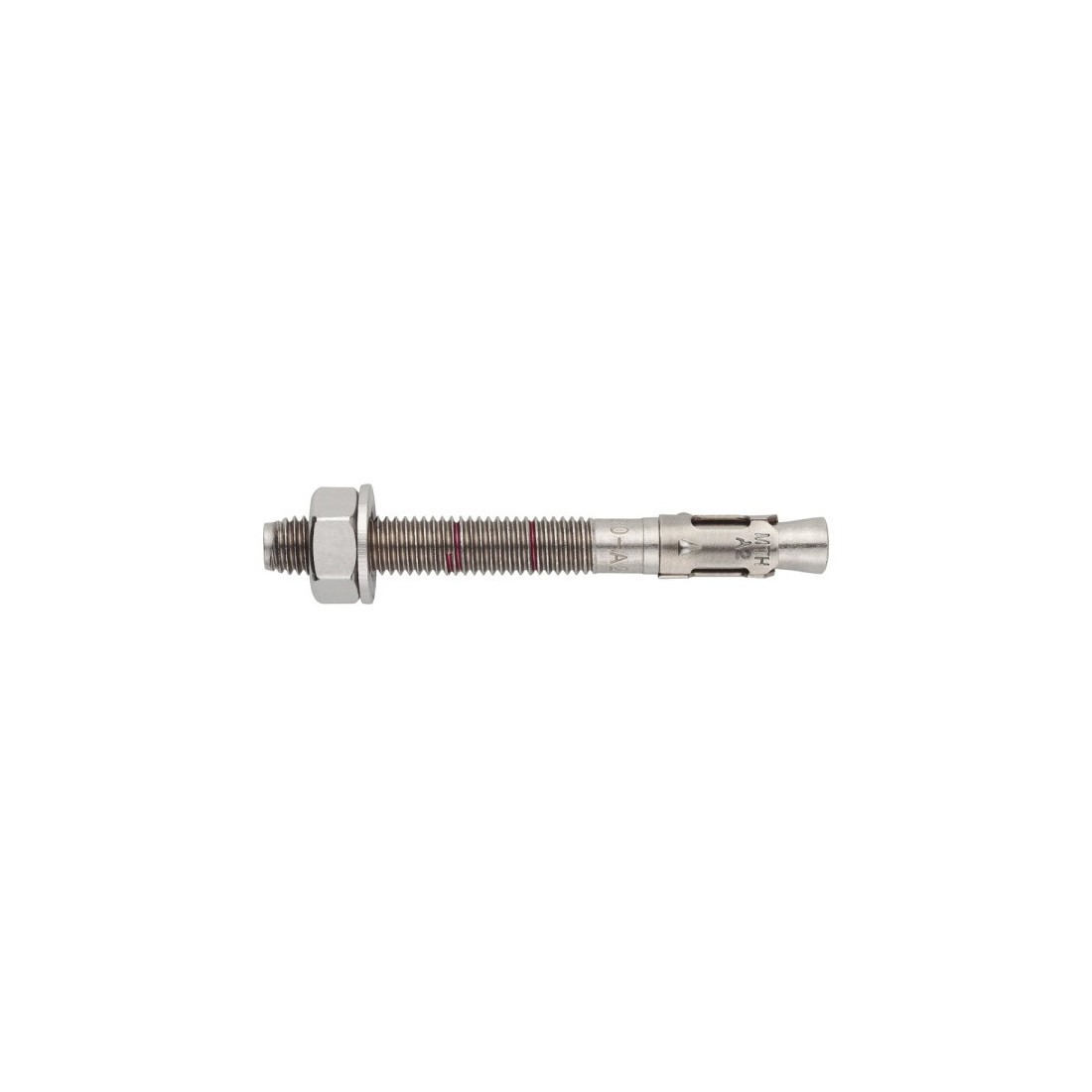

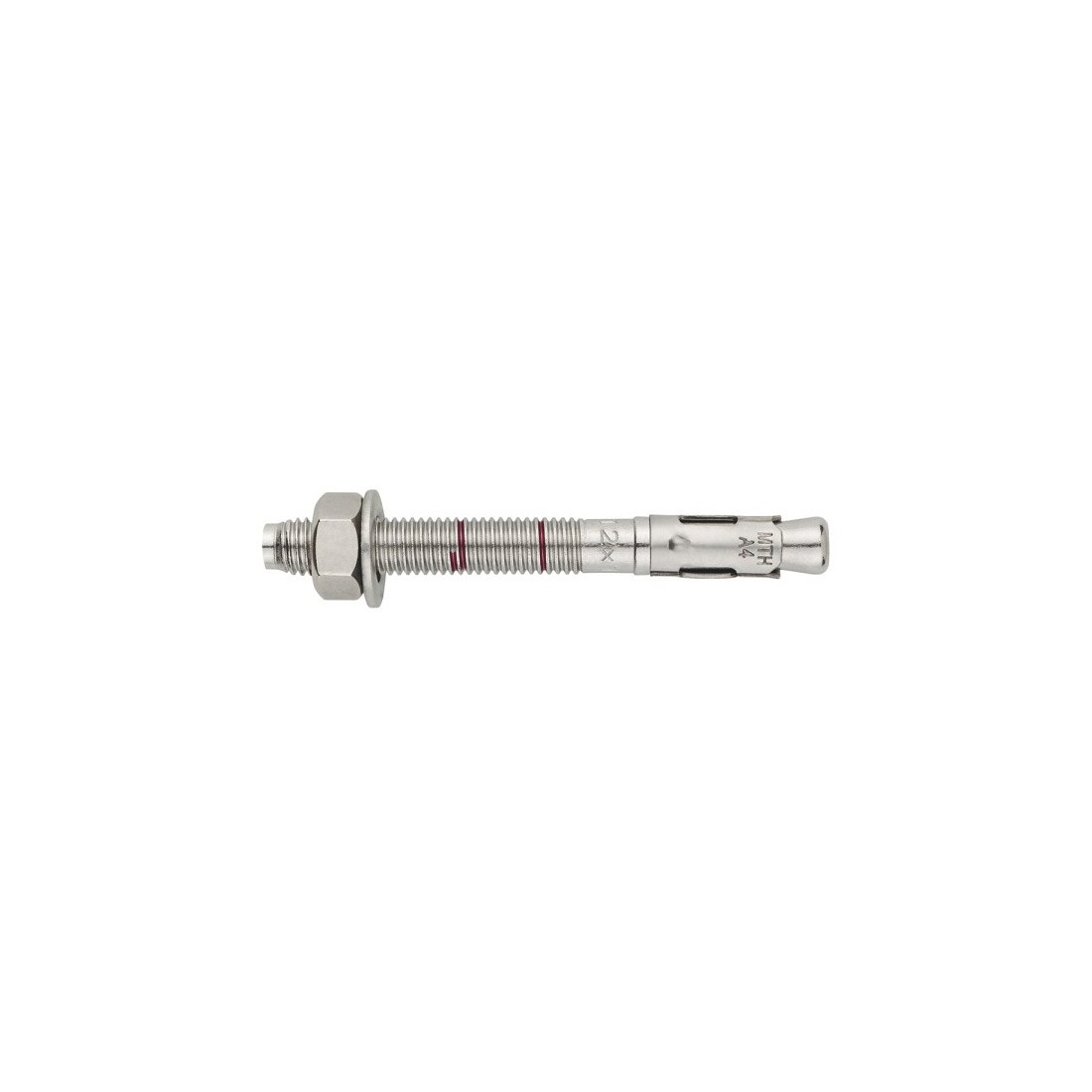

• In the product photos — three anchors of different appearance: a bluish-silver one stamped "MTH" and light grey ones stamped "MTH A2" and "MTH A4"; there is no material choice when picking a size, so we do not know which of them matches which variant.

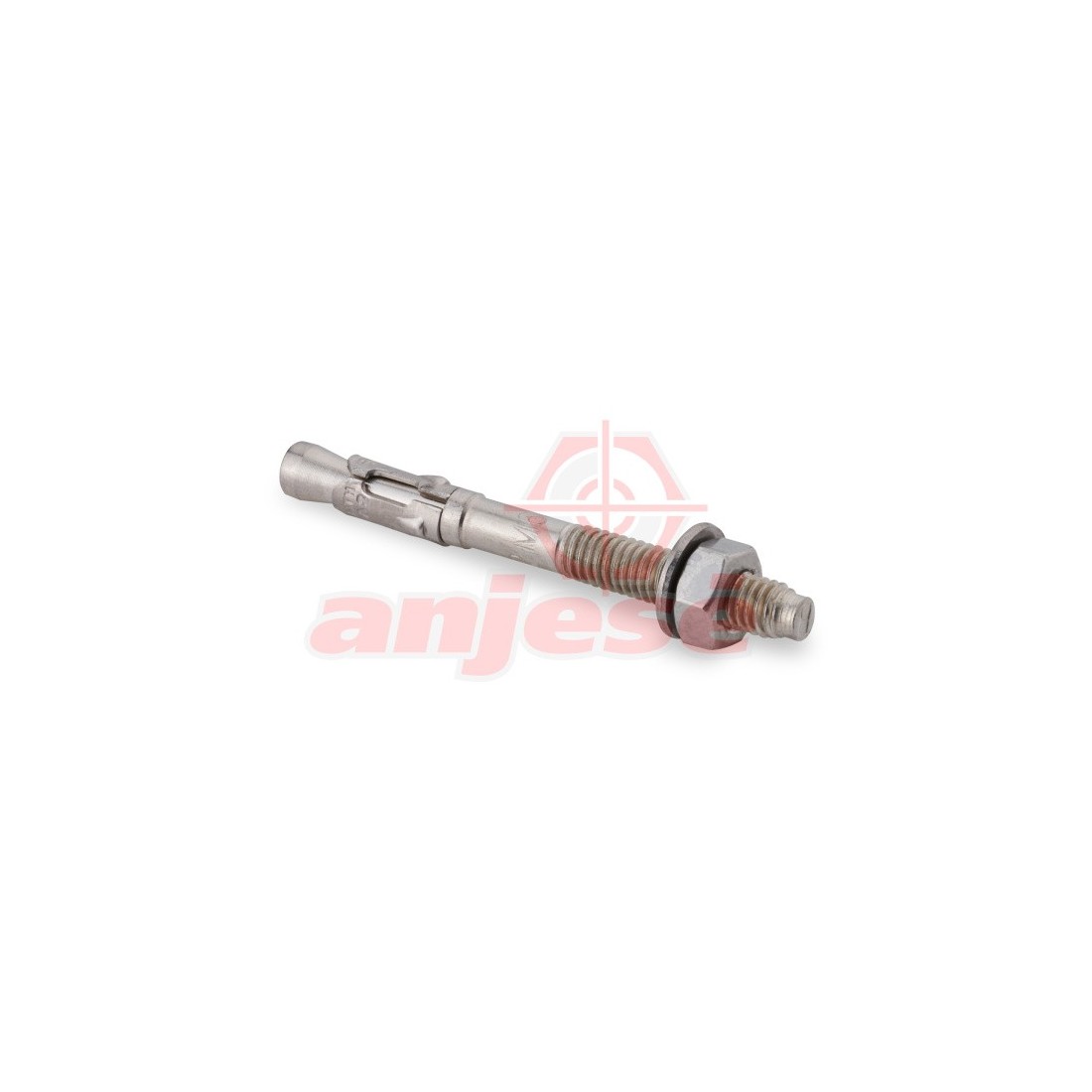

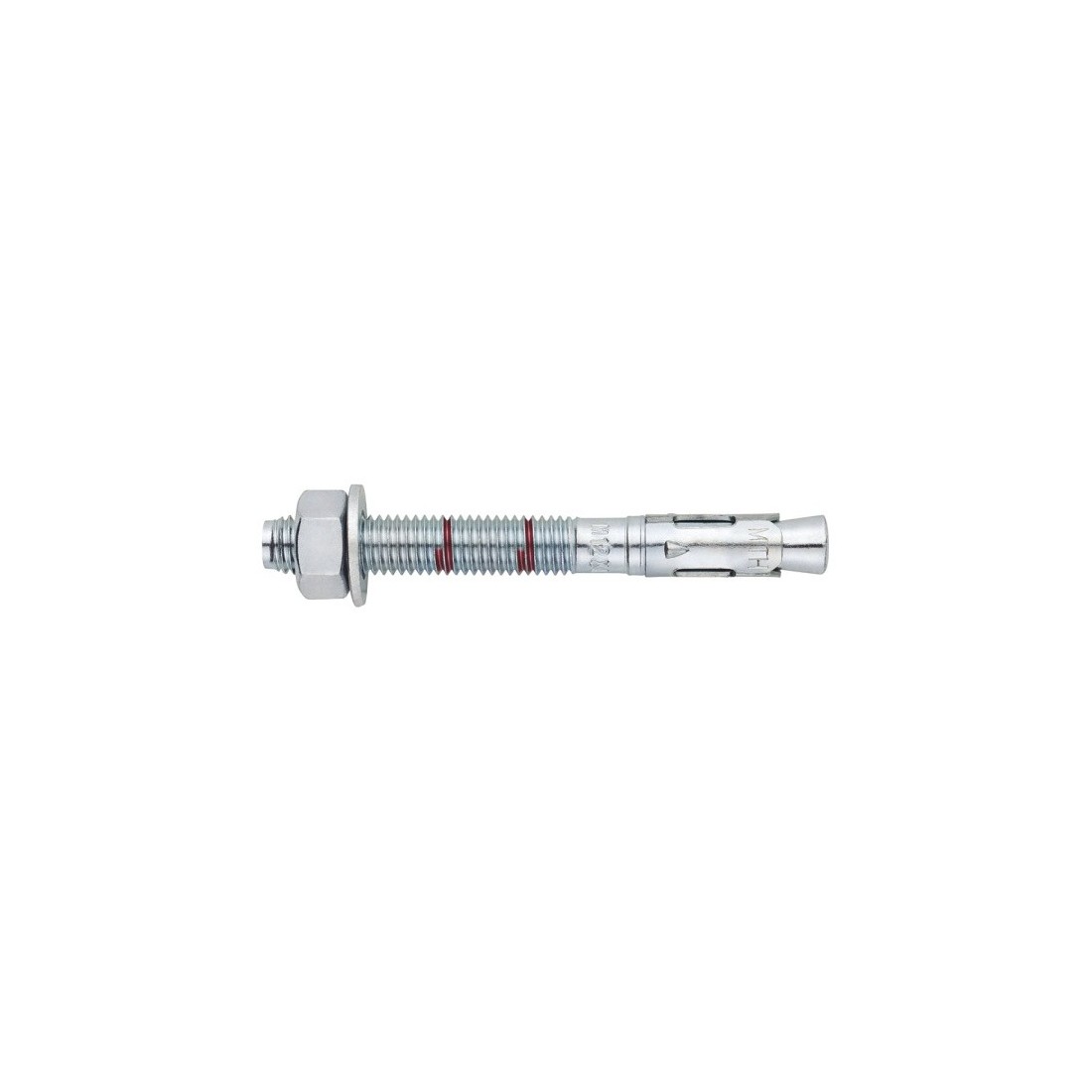

• In the photos the anchor has a hex nut and washer screwed on; at the conical end — a ring slit lengthwise; on the thread — two red marks.

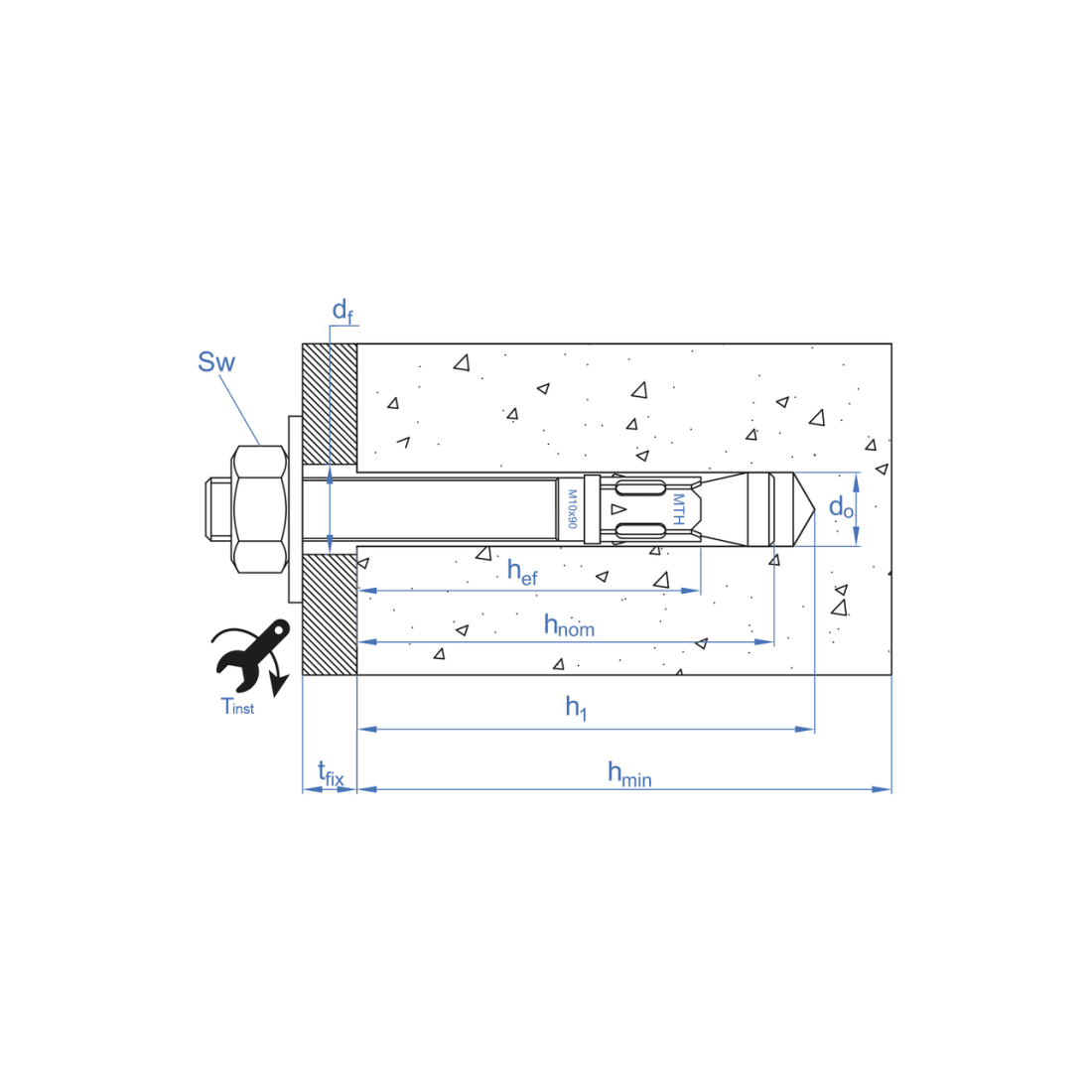

• In the drawing the dimensions are marked only with letter codes (hef, hnom, h1, hmin, tfix, d0, df, Sw, Tinst) without figures, and the anchor drawn there is labelled "M10x90" — the supplier did not provide the dimension values for each variant.

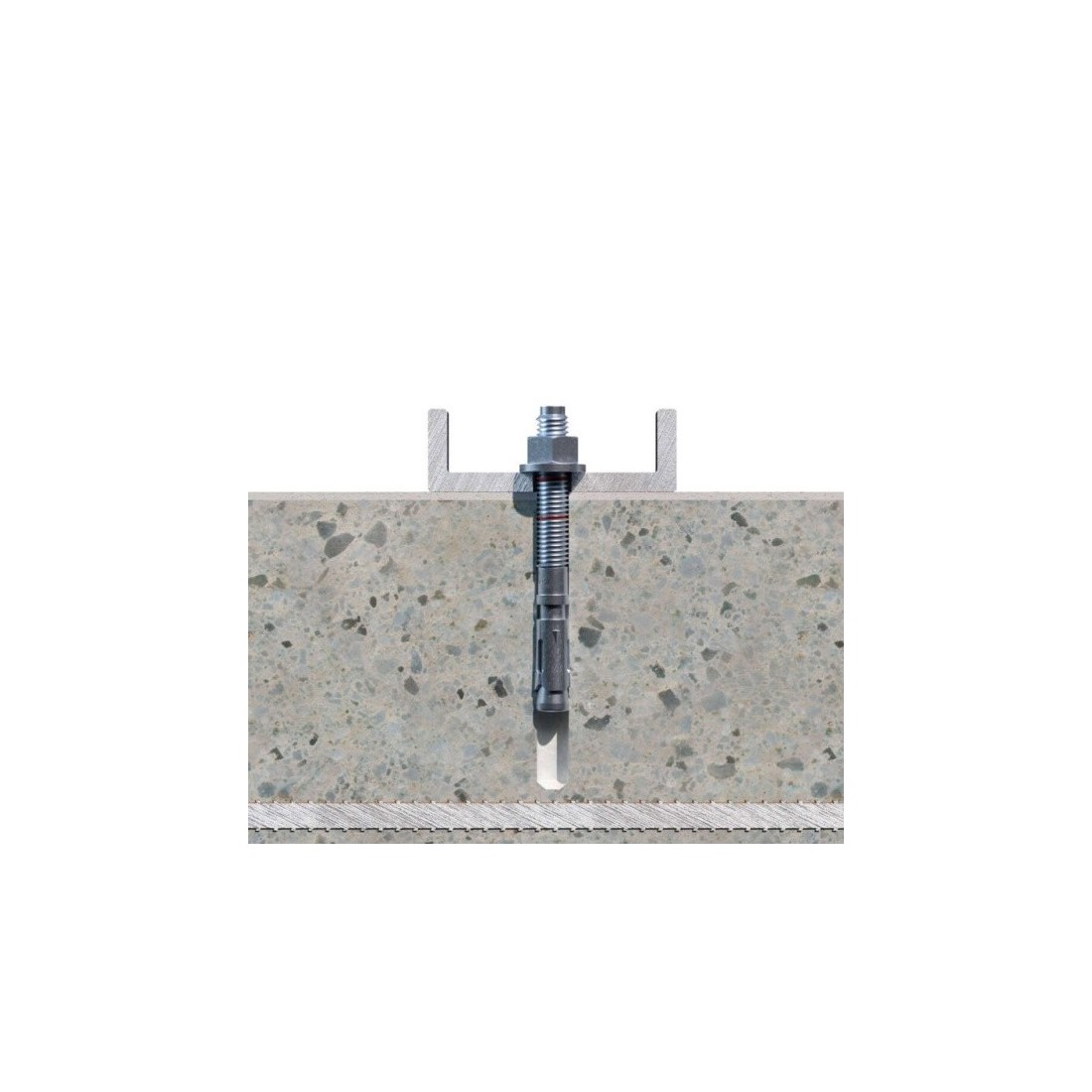

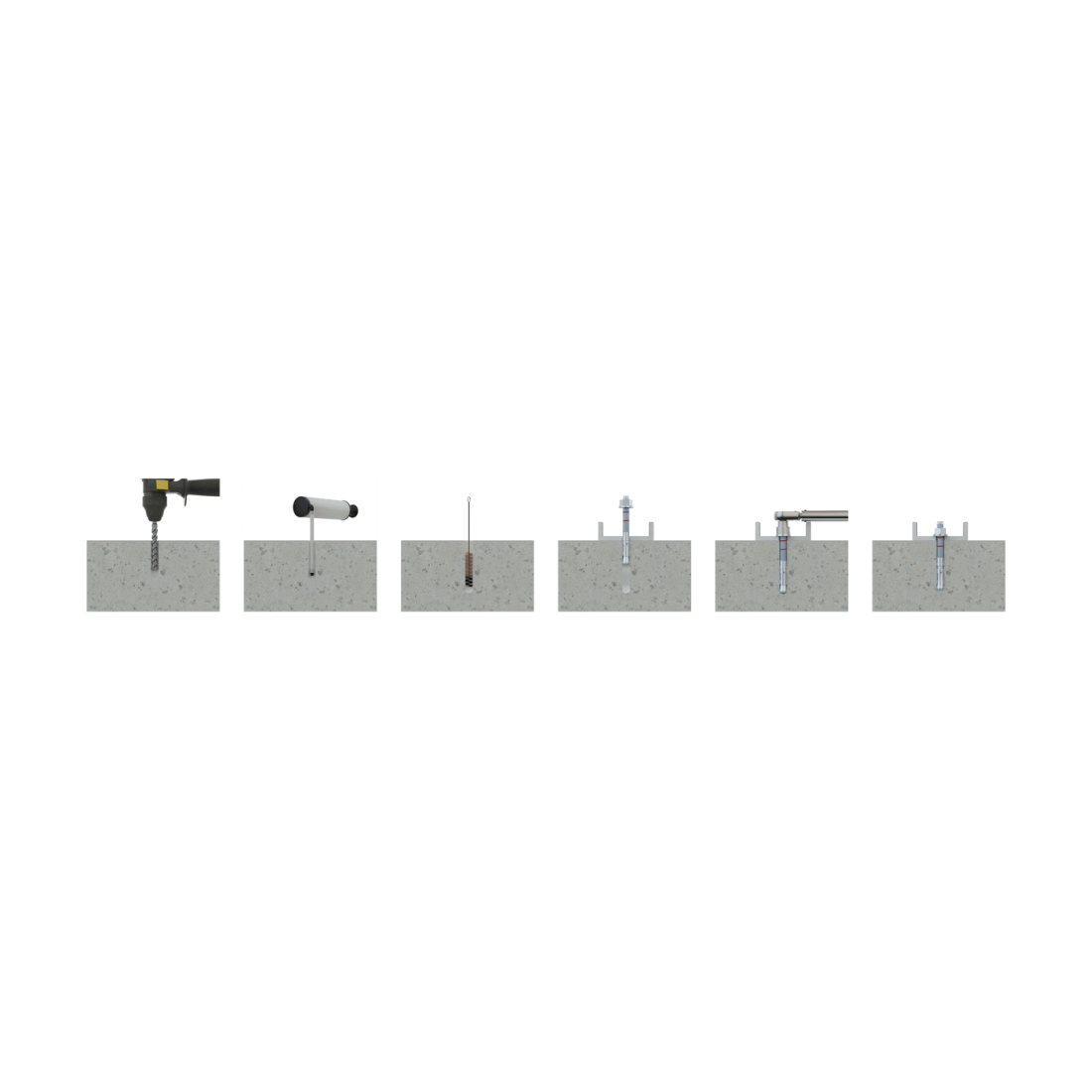

• The photos also include an installation sequence in pictures, but we do not retell it: how and with what to install the anchor, the supplier did not state in writing.

To be straight with you: the supplier stated in writing neither the material, nor the diameter of the hole in the concrete, nor the permissible load, and we will not judge that from photos. Before ordering, measure the thickness of the part being fastened and the hole in it, send us a photo — we will check it before you order.
